Thread: Antique butter churn mechanism - GIF

Hybrid View

  1. #1
    Supporting Member Altair's Avatar
    Join Date
    Aug 2013
    Posts
    12,020
    Thanks
    1,365
    Thanked 31,317 Times in 10,051 Posts
    New: BuildThreads.com - 300+ build posts/day (with photos)

  2. The Following User Says Thank You to Altair For This Useful Post:

    nova_robotics (Dec 18, 2021)

  3. #2
    Supporting Member hemmjo's Avatar
    Join Date
    Feb 2017
    Posts
    3,301
    Thanks
    410
    Thanked 2,131 Times in 1,230 Posts

    hemmjo's Tools
    Whatever fluid is, does not look like it would make very good butter!!

  4. The Following User Says Thank You to hemmjo For This Useful Post:

    nova_robotics (Dec 18, 2021)

  5. #3
    Isambard's Avatar
    Join Date
    Aug 2019
    Location
    Hawke's Bay, New Zealand
    Posts
    181
    Thanks
    0
    Thanked 77 Times in 51 Posts

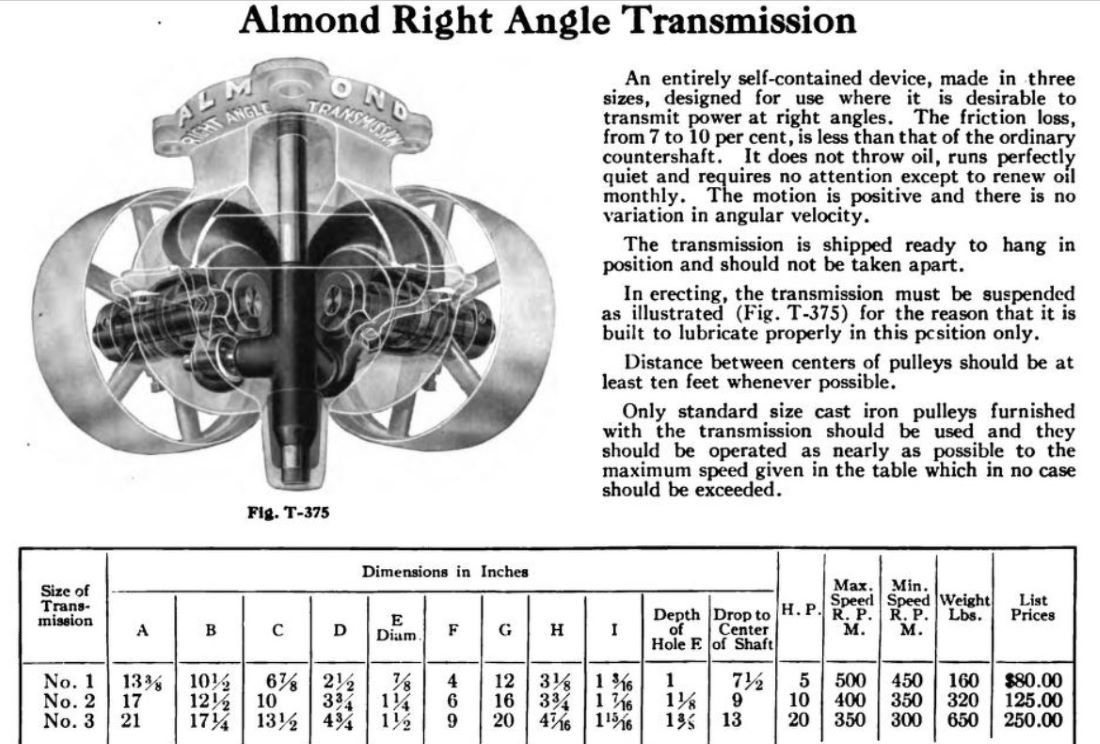

    That is actually an Almond gear-less right angle drive.

    Antique butter churn mechanism - GIF-almond-right-angle-transmission.jpg
    Last edited by Isambard; Dec 18, 2021 at 06:28 PM.

  6. The Following 5 Users Say Thank You to Isambard For This Useful Post:

    Altair (Dec 18, 2021), hemmjo (Dec 19, 2021), Jon (Dec 20, 2021), KustomsbyKent (Dec 20, 2021), nova_robotics (Dec 18, 2021)

  7. #4

    Join Date
    Feb 2019
    Posts
    155
    Thanks
    63
    Thanked 121 Times in 63 Posts

    clavius's Tools
    I have seen one of these at the New England Wireless and Steam Museum in Rhode Island. It's an interesting design and fascinating to just watch it run:




    For anyone interested, more about the museum here:

    https://newsm.org/

  8. The Following 11 Users Say Thank You to clavius For This Useful Post:

    albertq (Jun 10, 2025), Altair (Dec 19, 2021), Canyonman44 (Dec 20, 2021), chainsawd (Dec 26, 2021), emu roo (Jun 10, 2025), hemmjo (Dec 20, 2021), johncg (Dec 21, 2021), mwmkravchenko (Dec 25, 2021), nova_robotics (Dec 20, 2021), rgsparber (Dec 20, 2021), Tooler2 (Dec 20, 2021)

  9. #5
    Supporting Member
    Join Date
    Feb 2018
    Posts
    385
    Thanks
    298
    Thanked 85 Times in 72 Posts
    Really neat!

  10. #6
    Supporting Member
    Join Date
    Sep 2018
    Posts
    2,923
    Thanks
    13,831
    Thanked 1,782 Times in 1,004 Posts

    nova_robotics's Tools
    Very cool. Is that sump supposed to be (more) full of oil? Looks like those ball joints are supposed to get an oil bath on every rotation.

  11. #7
    Isambard's Avatar
    Join Date
    Aug 2019
    Location
    Hawke's Bay, New Zealand
    Posts
    181
    Thanks
    0
    Thanked 77 Times in 51 Posts
    If you click on the specs above, all will be revealed...

  12. #8
    Supporting Member hemmjo's Avatar
    Join Date
    Feb 2017
    Posts
    3,301
    Thanks
    410
    Thanked 2,131 Times in 1,230 Posts

    hemmjo's Tools
    I learned from the video, we are looking at the device upside down, with the bottom cover off. The vertical shaft the mechanism slides on, is supposed to be supported on both ends. With the cover on, the shaft would be more fully supported and the whole mechanism would be running in oil.

  13. The Following User Says Thank You to hemmjo For This Useful Post:

    nova_robotics (Dec 21, 2021)

  14. #9
    Supporting Member
    Join Date
    Sep 2018
    Posts
    2,923
    Thanks
    13,831
    Thanked 1,782 Times in 1,004 Posts

    nova_robotics's Tools
    Quote Originally Posted by hemmjo View Post
    I learned from the video, we are looking at the device upside down, with the bottom cover off. The vertical shaft the mechanism slides on, is supposed to be supported on both ends. With the cover on, the shaft would be more fully supported and the whole mechanism would be running in oil.
    Ah yes. Good call. I should have watched the video to the end.

  15. #10
    Supporting Member
    Join Date
    Feb 2018
    Posts
    385
    Thanks
    298
    Thanked 85 Times in 72 Posts
    I would be happier with outboard supports for the shafts to lessen sideload on the drive but the principle is brilliant!
