    Drill Press DRO

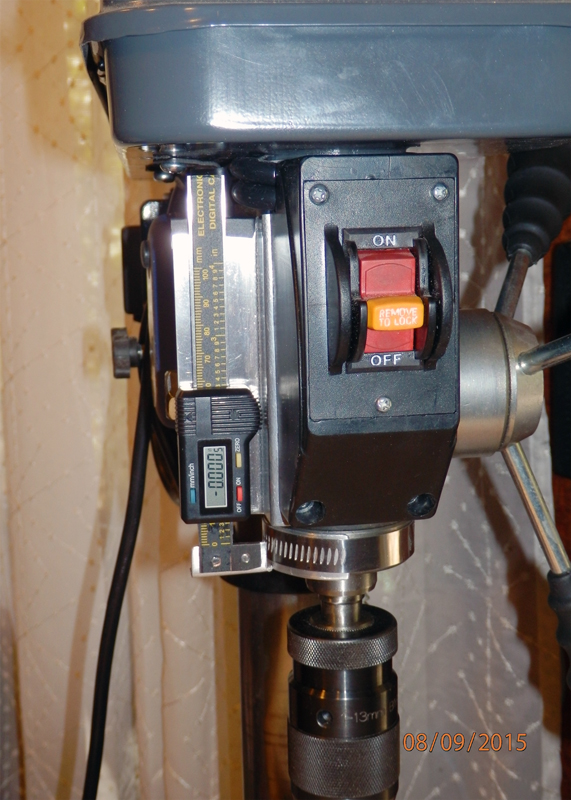

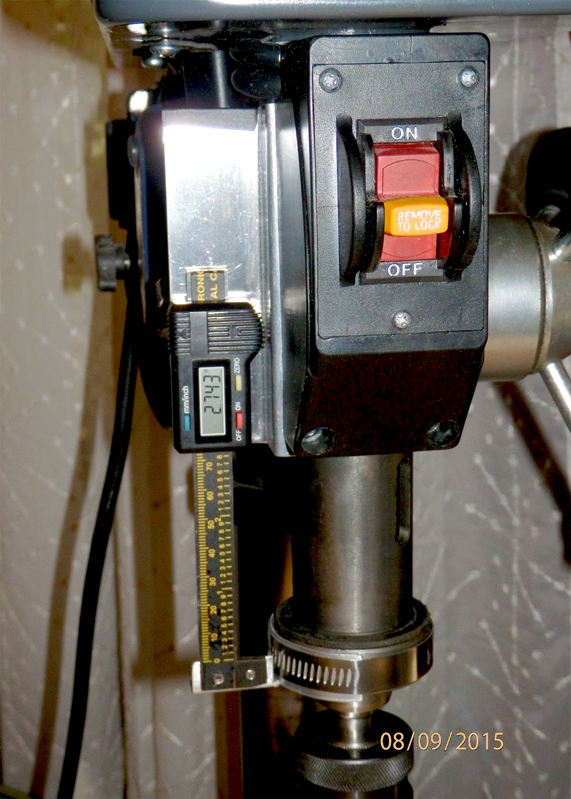

    I'm finally posting a recent project here on this great forum...to add another DRO to the big list here. I've been wanting some kind of DRO for my drill press for quite a while now and finally came up with something for my Cheep and Cheerful modus. It ended up being a bit more convoluted than I thought with some obstacles to get through but here it is. I have added a full write up on my website with more pictures and dissertation. Hopefully some might find it useful. ~PJ
