    Cool Gasket Cutter

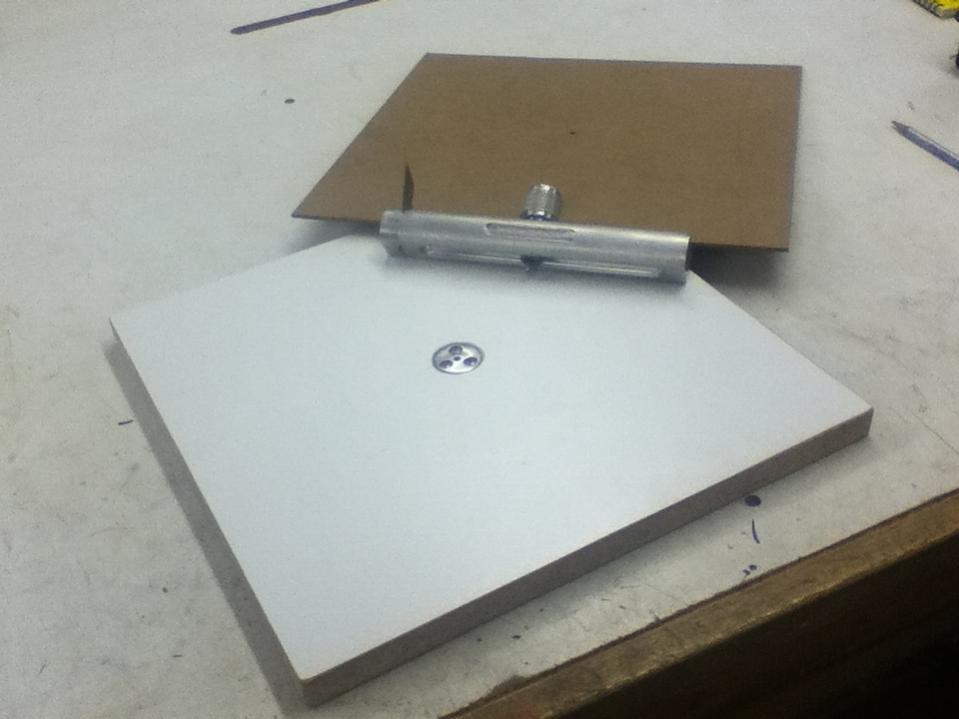

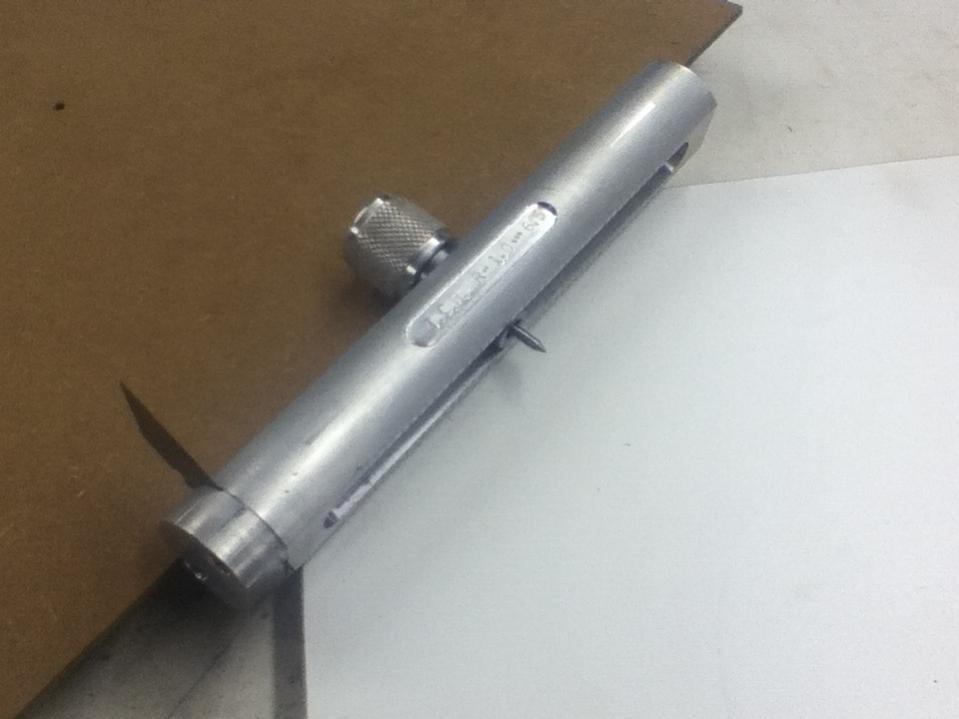

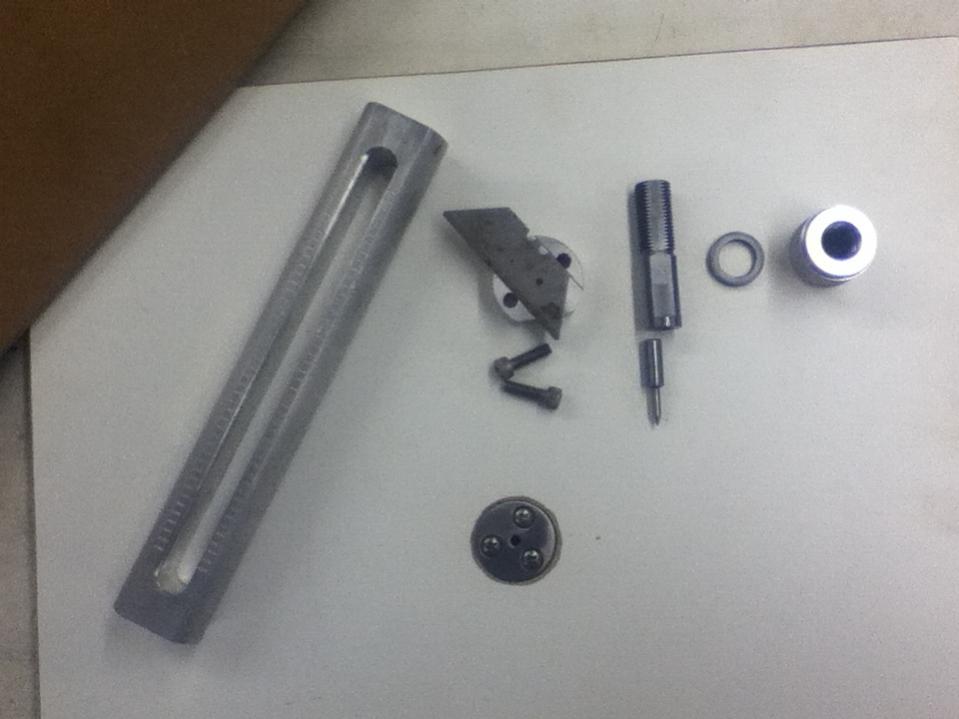

    New Gasket Cutter I designed & made one for my son and myself. I will update post with CAD drawings soon.Gasket Cutter-gc3.jpgGasket Cutter-gc1.jpgGasket Cutter-gc2.jpg

    If anyone would like a copy of the actual CAD .dwg file, contact me and I would be happy to e-mail it.

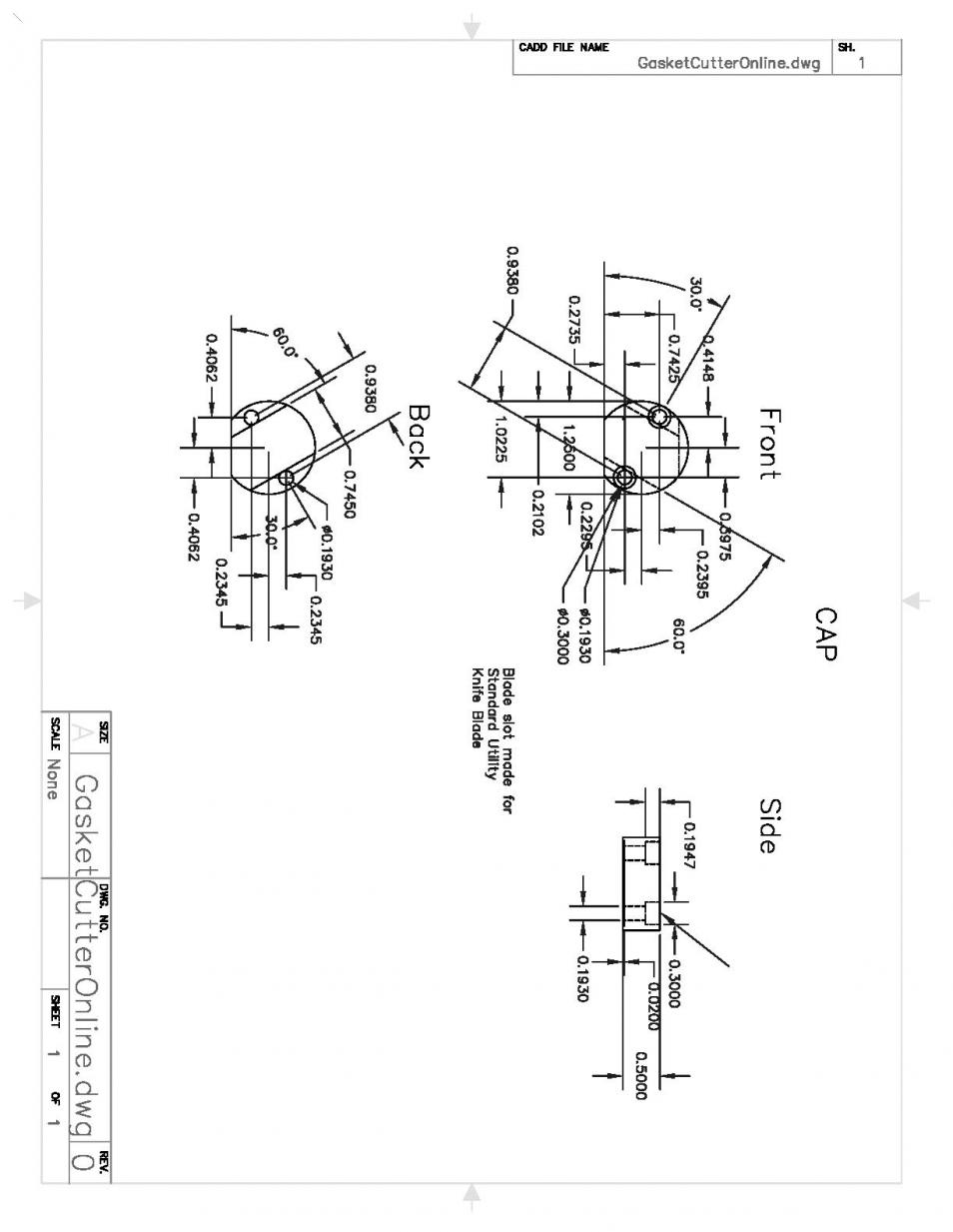

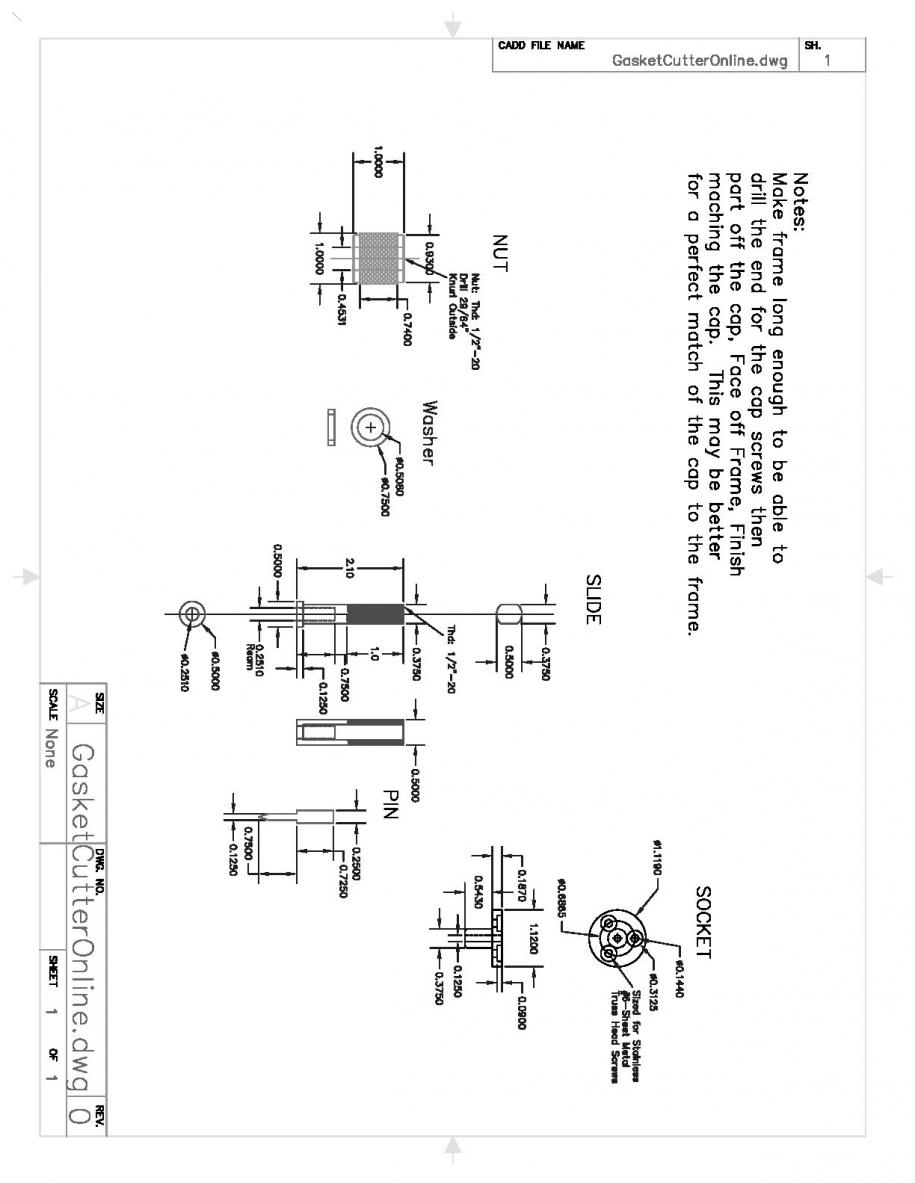

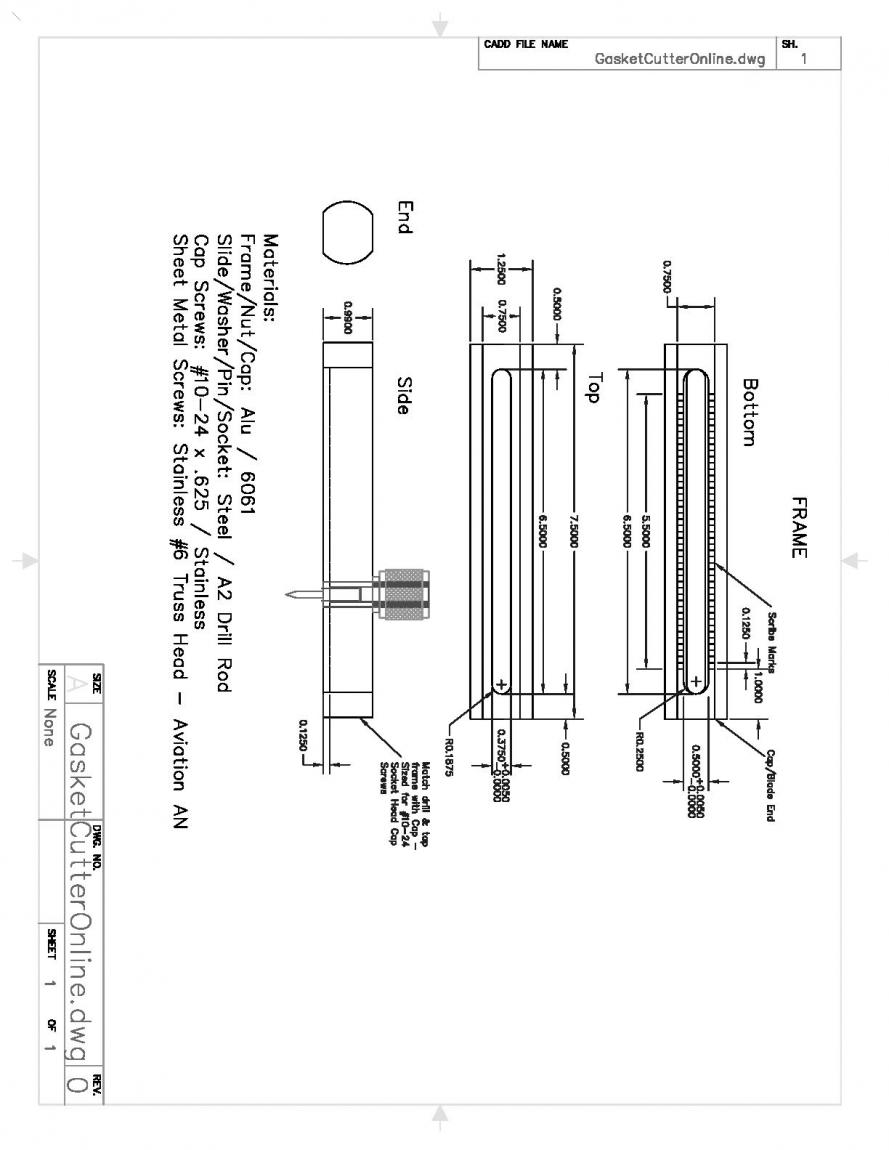

    Gasket Cutter-gasketcutteronlineparts.jpgGasket Cutter-gasketcutteronline-frame.jpgGasket Cutter-gasketcutteronlinecap.jpg

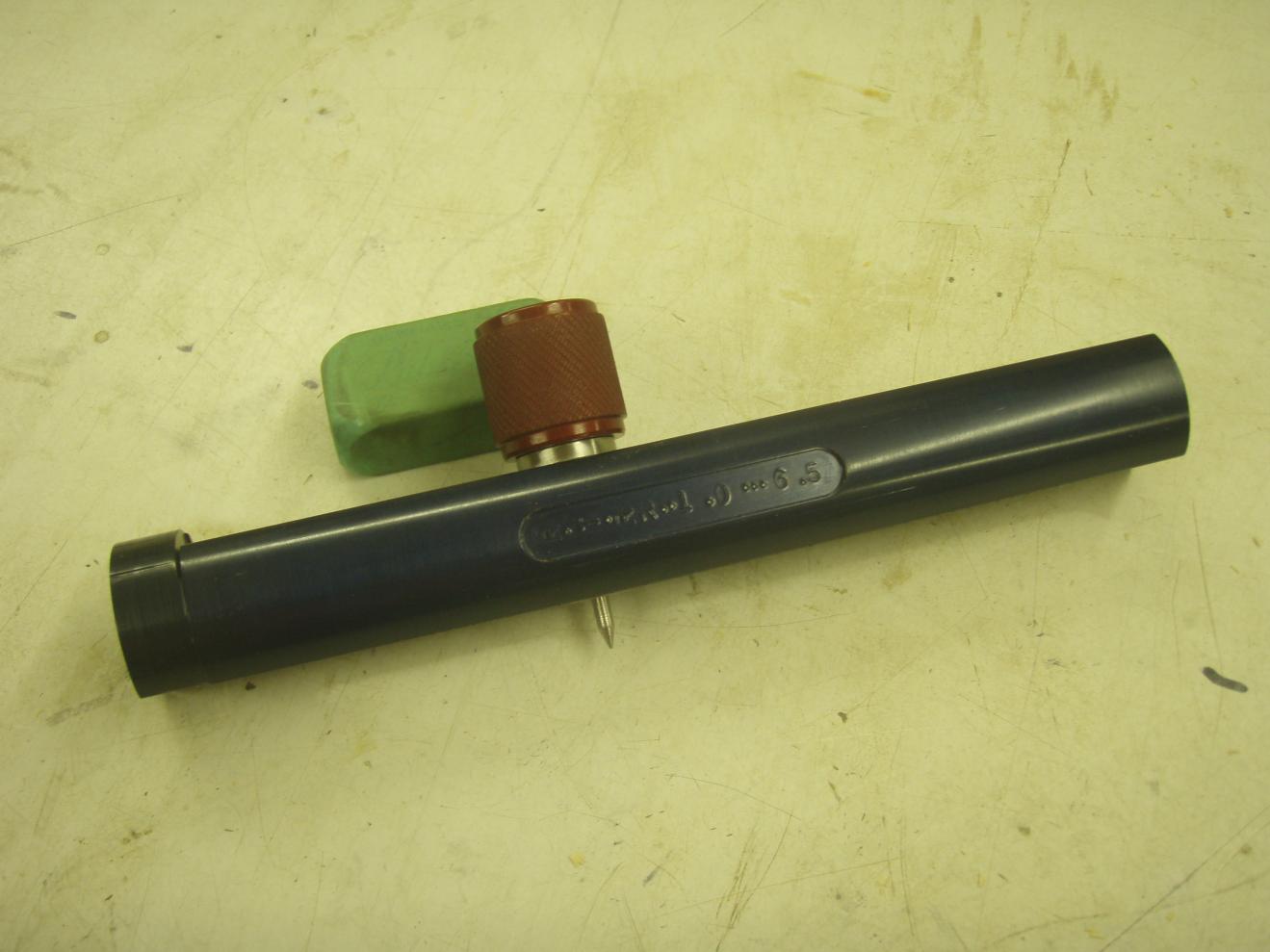

    Gasket Cutter-gasketcutterblue.jpg
    45 Best Harbor Freight Tool Modifications

    Last edited by Catfish; 11-14-2013 at 02:22 PM. Reason: Added photo after andoize

  2. The Following User Says Thank You to Catfish For This Useful Post:

    kbalch (10-14-2013)

  3. #2
    kbalch's Avatar
    Join Date
    Jun 2012
    Location
    Clermont, FL
    Posts
    5,034
    Thanks
    2,275
    Thanked 520 Times in 375 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    500+ Homemade Tool Plans

    Thanks Catfish! I've added your Gasket Cutter to our Machining category, as well as to your builder page: Catfish's Homemade Tools. I'll be glad to add some more details to the entry once you've posted those CAD drawings. Your receipt:

    Forge Build Guide


  4. #3
    Supporting Member Catfish's Avatar
    Join Date
    Oct 2013
    Location
    Mariposa, California
    Posts
    233
    Thanks
    52
    Thanked 352 Times in 142 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Catfish's Tools
    Thank you. How can I post the CAD drawing or attach it to a post?

  5. #4
    kbalch's Avatar
    Join Date
    Jun 2012
    Location
    Clermont, FL
    Posts
    5,034
    Thanks
    2,275
    Thanked 520 Times in 375 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    You can attach the drawing (assuming it's an image file) by clicking the Insert Image button indicated here:

    Gasket Cutter-screenshot2012-10-12at115204am.jpg

    Please let me know if that doesn't work, or if you need any further assistance.

    Ken

  6. #5
    Content Editor
    Supporting Member
    DIYer's Avatar
    Join Date
    Aug 2013
    Posts
    3,090
    Thanks
    550
    Thanked 1,309 Times in 1,182 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Interesting. Any pics or vids of the tool in action?

  7. #6
    Supporting Member Catfish's Avatar
    Join Date
    Oct 2013
    Location
    Mariposa, California
    Posts
    233
    Thanks
    52
    Thanked 352 Times in 142 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Catfish's Tools
    I will put a short video together and add it to the post. Thank you for your interest.
