Thread: High-quality black-and-white photographs of large old machines and tools

  1. #271
    Jon
    Jon is offline Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    19,288
    Thanks
    5,645
    Thanked 25,840 Times in 7,059 Posts
    Mentioned
    0 Post(s)
    Tagged
    5 Thread(s)
    Cyclotron particle accelerator. August, 1939.

    Fullsize image: https://s3-us-west-1.amazonaws.com/h...n_fullsize.jpg



    More: https://en.wikipedia.org/wiki/Cyclotron

  2. The Following 2 Users Say Thank You to Jon For This Useful Post:

    Duke_of_URL (08-24-2020), nova_robotics (08-29-2020)

  3. #272
    Supporting Member bruce.desertrat's Avatar
    Join Date
    Nov 2017
    Posts
    473
    Thanks
    246
    Thanked 407 Times in 225 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    bruce.desertrat's Tools
    Cyclotron, huh? Where are the pedals? [gdr]

  4. #273
    Supporting Member Duke_of_URL's Avatar
    Join Date
    Aug 2018
    Location
    Texas
    Posts
    158
    Thanks
    201
    Thanked 54 Times in 38 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Ah yes, Ernest Lawrence at U.C. Berkeley back in the day.

  5. #274
    Supporting Member jdurand's Avatar
    Join Date
    May 2019
    Location
    Los Gatos, California, USA & Goryachy Klyuch, Krasnodar Krai, Russia
    Posts
    1,033
    Thanks
    88
    Thanked 561 Times in 305 Posts
    Mentioned
    1 Post(s)
    Tagged
    0 Thread(s)

    jdurand's Tools
    Modern version heats a cup of tea in 30 seconds to a minute.

  6. #275
    Jon
    Jon is offline Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    19,288
    Thanks
    5,645
    Thanked 25,840 Times in 7,059 Posts
    Mentioned
    0 Post(s)
    Tagged
    5 Thread(s)
    Inside a high-pressure steam drum.

    Fullsize image: https://s3-us-west-1.amazonaws.com/h...m_fullsize.jpg


  7. #276
    Supporting Member mlochala's Avatar
    Join Date
    Nov 2012
    Posts
    128
    Thanks
    7
    Thanked 47 Times in 28 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    mlochala's Tools
    Looks very dusty in there.

  8. #277
    Supporting Member
    Join Date
    Sep 2012
    Location
    Hinchinbrook QLD
    Posts
    290
    Thanks
    38
    Thanked 120 Times in 74 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    That will be the oxide layer. Steam strips every last molecule of preservative from the surface of the steel. But the hot dry environment prevents corrosion forming. So you just get that thin layer of oxide that forms very quickly when the system is depressurized and moisture forms on the surface. A bit like degreasing steel with acid. If you dont apply something to the surface rust will form in minutes

  9. #278
    Supporting Member hemmjo's Avatar
    Join Date
    Feb 2017
    Posts
    597
    Thanks
    15
    Thanked 346 Times in 204 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    hemmjo's Tools
    Not sure what I am looking at in regard to the steam drum. Is that the inside of something like this?

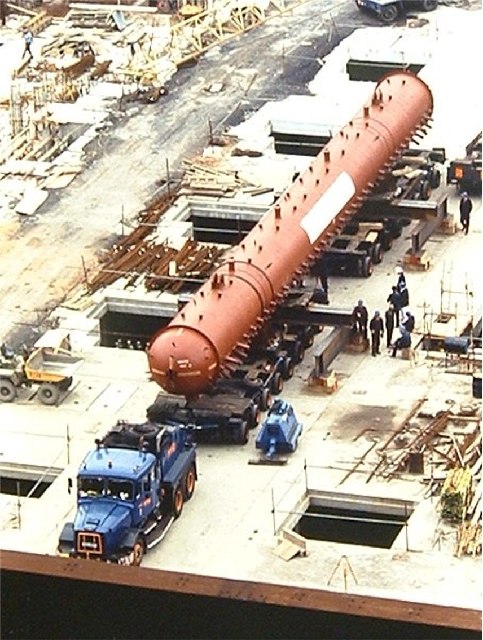

    High-quality black-and-white photographs of large old machines and tools-drax_power_station_boiler.jpg

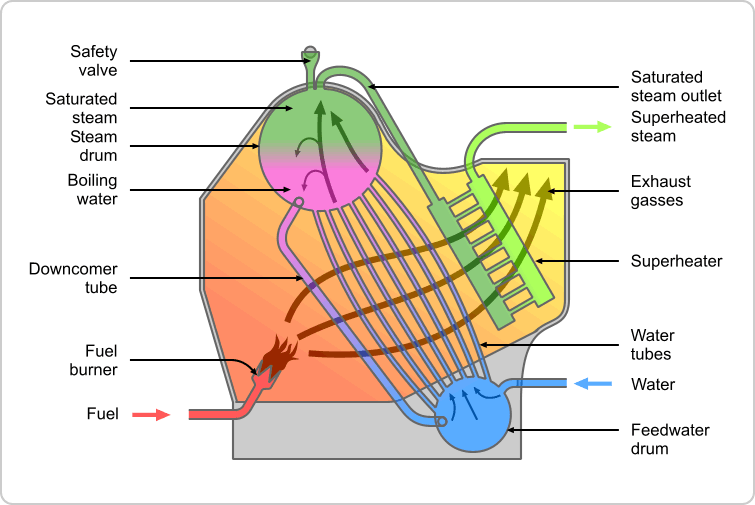

    High-quality black-and-white photographs of large old machines and tools-water_tube_boiler_schematic.png

  10. The Following User Says Thank You to hemmjo For This Useful Post:

    Toolmaker51 (10-07-2020)

  11. #279
    Supporting Member jdurand's Avatar
    Join Date
    May 2019
    Location
    Los Gatos, California, USA & Goryachy Klyuch, Krasnodar Krai, Russia
    Posts
    1,033
    Thanks
    88
    Thanked 561 Times in 305 Posts
    Mentioned
    1 Post(s)
    Tagged
    0 Thread(s)

    jdurand's Tools
    I figured we were looking at the flame chamber and the water was along the sides. ??

  12. #280
    Jon
    Jon is offline Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    19,288
    Thanks
    5,645
    Thanked 25,840 Times in 7,059 Posts
    Mentioned
    0 Post(s)
    Tagged
    5 Thread(s)
    Steam condenser inside a generating station. 1943.

    Fullsize image: https://s3-us-west-1.amazonaws.com/h...r_fullsize.jpg
