    Now that's a very rare and interesting piece - a Belidor bascule bridge, a rolling counterweight double-leaf bascule bridge,.

    Reason for construction: A perfectly counter-balanced bascule bridge, needing a minimum of work to lift.

    Guess the first US example of this type was Berry's Creek, N.J. bascule bridge...

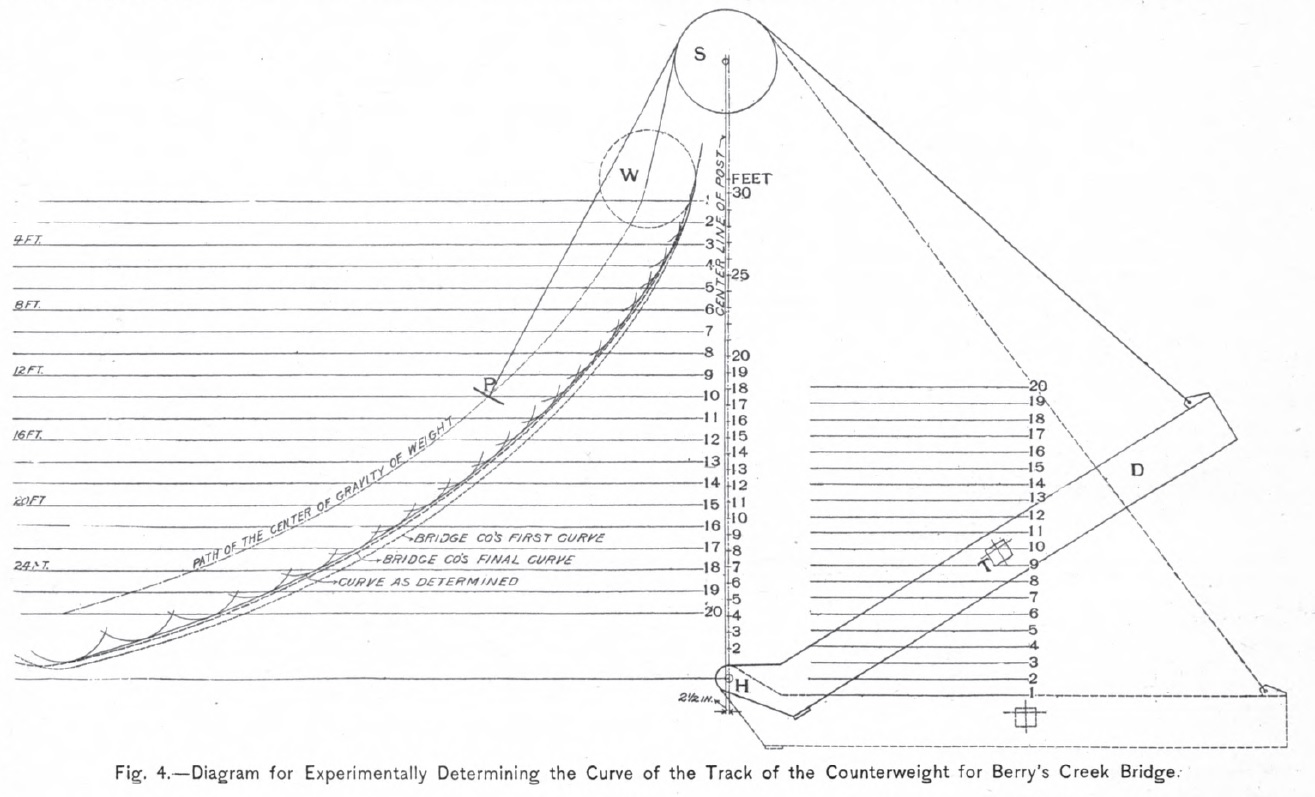

    Michigan Avenue lift bridge - photo-track-determination-berrys-creek.jpg

    PDF from Railroad Gazette, Nov 27th 1896 describing the theory, design and function of this type:
    Bélidor bascule railroad bridge - Meccano Gallery

    2 cents
    Johan

    Links:
    Animated operation: https://mathcurve.com/courbes2d.gb/p...ontlevis.shtml

    US last remaining example: https://historicbridges.org/bridges/.../glimmerglass/

    The Aussies had the intrepid bridge designer Harvey Dare:https://portal.engineersaustralia.or...ge_Maclean.pdf

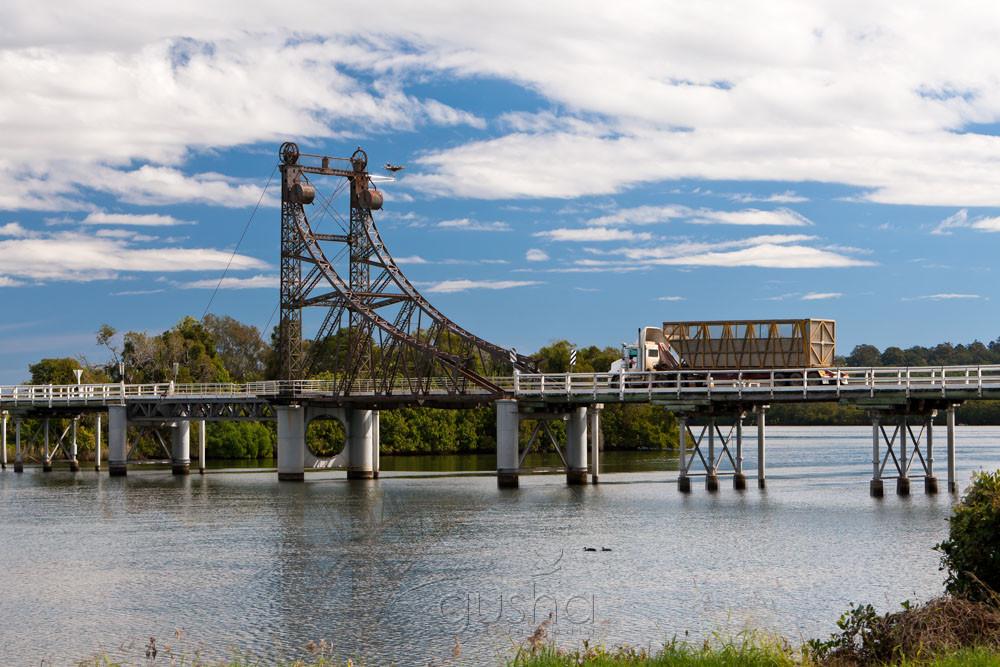

    Michigan Avenue lift bridge - photo-mc1818-mcfarlane-bridge-photo.jpg
