Need suggestions on boring some plastic wheels to a larger bore in quantity

Hey guys,
I'm looking for suggestions on boring out the center of some plastic wheels to a larger bore.

Background:
2 types of wheels, a 8" outer diameter, and a 5" outer diameter. The wheels are a Polyurethane core with a soft perimeter. They come with a 1.188" bore for an unsealed roller bearing.
I am boring them out on both sides to accept a 1.375" OD sealed ball bearing, 2 per wheel.
I have successfully chucked these into a 4 jaw chuck using dial indicator to zero the runout, and machine out one side, then flip it over and do the other side. I typically machined each bore to about 1.368 to 1.372 so the bearing fit fairly tight. I did the first 24 wheels this way... but it's slow. Because of the soft outer layer of the wheel, tightening the 4-jaw chuck down to zero runout is time consuming. The actual machining is fairly quick.

Looking to optimize, I ordered a set of adjustable reamers, and just got those. I tried them the other night on a single wheel, and it works, but is slower. I had to use 2 of the adjustable reamers. Starting with the smaller reamer, I locked it in the vice, adjusted it until it was just starting to cut, and then turned the wheel by hand down onto the reamer. Adjusting it larger, and doing again & again & again, until that reamer was maxed out. Then I switched out to the larger reamer, and crept up on the final size.
It didn't require any specialized equipment, resulted in a nice finish, and the bearing fit well, but it took even longer than machining them.

Future looking, I will need to do more of these wheels in batches of 24, in a mix of 8" and 5" wheels.

What are your suggestions for doing this quicker/easier? You can't take off too much material at one time, as the material is a bit spongy so it flexes as you machine. Small cuts seems to work the best. Holding these is a problem with the soft outer portion. They are also not perfectly concentric from center to outer diameter, but it's not critical since this is all a low speed final application.... 7 mph.

Thanks
Kent

Quote:

---

Originally Posted by KustomsbyKent

Hey guys,
I'm looking for suggestions on boring out the center of some plastic wheels to a larger bore.

Background:
2 types of wheels, a 8" outer diameter, and a 5" outer diameter. The wheels are a Polyurethane core with a soft perimeter. They come with a 1.188" bore for an unsealed roller bearing.
I am boring them out on both sides to accept a 1.375" OD sealed ball bearing, 2 per wheel.
I have successfully chucked these into a 4 jaw chuck using dial indicator to zero the runout, and machine out one side, then flip it over and do the other side. I typically machined each bore to about 1.368 to 1.372 so the bearing fit fairly tight. I did the first 24 wheels this way... but it's slow. Because of the soft outer layer of the wheel, tightening the 4-jaw chuck down to zero runout is time consuming. The actual machining is fairly quick.

Looking to optimize, I ordered a set of adjustable reamers, and just got those. I tried them the other night on a single wheel, and it works, but is slower. I had to use 2 of the adjustable reamers. Starting with the smaller reamer, I locked it in the vice, adjusted it until it was just starting to cut, and then turned the wheel by hand down onto the reamer. Adjusting it larger, and doing again & again & again, until that reamer was maxed out. Then I switched out to the larger reamer, and crept up on the final size.
It didn't require any specialized equipment, resulted in a nice finish, and the bearing fit well, but it took even longer than machining them.

Future looking, I will need to do more of these wheels in batches of 24, in a mix of 8" and 5" wheels.

What are your suggestions for doing this quicker/easier? You can't take off too much material at one time, as the material is a bit spongy so it flexes as you machine. Small cuts seems to work the best. Holding these is a problem with the soft outer portion. They are also not perfectly concentric from center to outer diameter, but it's not critical since this is all a low speed final application.... 7 mph.

Thanks
Kent

---

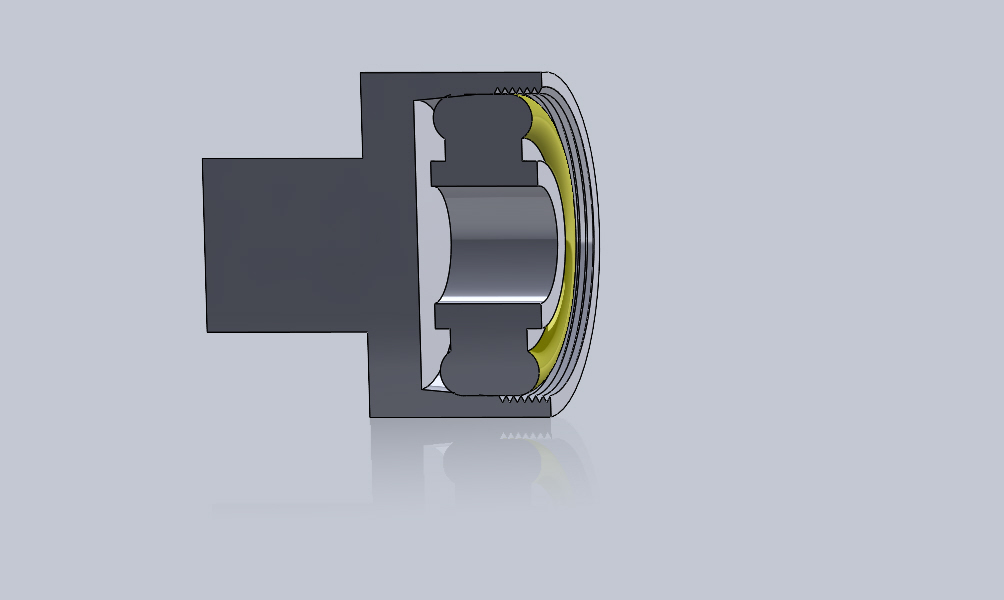

Make you a holder for your wheels that the wheel will fit in but the bore of the hollow arbor has a few degrees taper thread the inside of the straight part of the bore and an internal nut with a large enough bore to allow your boring bar to bore the center of the wheel

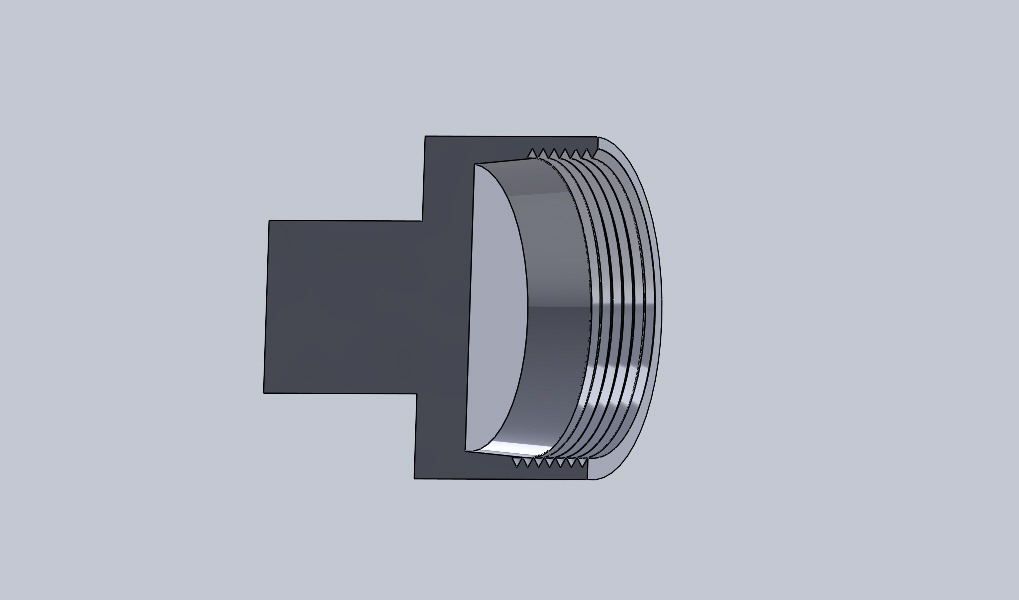

the arbor would look something like this then you could use your 3 jaw if you wanted to because you never touch the chuck just remove the nut and insert another wheel
You would have to make one for each size but if you have more than a very few it is worth the time Just find a piece of pipe weld a back plate to it weld a shaft or if your chuck is large enough chuck on the perimeter without the need
for a stub shaft You may even find a pipe nipple and cap near the size you require then just bore to suit . The threads on the fixture need not be internal but then it would rewuire a cap nut and spacer to tighten on the wheel's sides

Attachment 41070
Attachment 41071

Thanks Frank! Pipe chunks that large aren't readily available where I am. I wonder if I could make that outer band portion out of plywood, and slit it multiple times around the perimeter so it's like a collet, and then use a hose clamp to cinch it around the wheel?

Hi Kent

It does not have to be a pipe section etc. If your lathe has the capacity and the wheels and centres are concentric (which I assume they are), you could just machine a suitable recess in a flat plate and weld on some clamping lugs. The clamping lugs would clamp the wheel to the face of the plate, via clamping "arms" not clamping around the circumference, two or three would be sufficient. I'd consider a recess of 4-6 mm is sufficient to position the wheel securely as there is not too much weight involved and this weight is evenly distributed.

If you are smart, you could create TWO recesses in the plate and cater for both size wheels. Perhaps 6 mm for the 8" wheel and 12 mm for the 5" wheel. That way you only ever have to set up the "jig" once to turn as many wheels as you need. With some thought you could utilise the same clamp arms and lugs to clamp both size wheels. If you want some thoughts on "design" let me know.

Align the recess to the lathe centre and insert the wheel, clamp, bore, unclamp, flip around, clamp, bore other side and release.

Regards

Peter

Afterthought...

Weld the lugs on first, probably just two lugs to allow convenient positioning in a four jaw chuck. Make the recesses 4 mm for the 8" wheel, another 4 mm deeper for the 5" wheel and using a 12 mm thick plate there would be 4 mm left so the wheels don't fall through :-)

Afterthought two...

After rereading your post and jumping down from my conclusion, perhaps my suggestion was not appropriate. The conclusion I jumped to was thinking about plastic disks, not real "wheels", sorry about that :-)

Quote:

---

Originally Posted by KustomsbyKent

Thanks Frank! Pipe chunks that large aren't readily available where I am. I wonder if I could make that outer band portion out of plywood, and slit it multiple times around the perimeter so it's like a collet, and then use a hose clamp to cinch it around the wheel?

---

hell yes - you're approaching the same problem the wood turners face with large hollow bowls. They make up a chuck with wooden sides, and then simply have a face" washer" which has bolts through to the backing plate - imagine a drum or banjo with the work piece inside, and a hole in the top so you reach in and access the work piece.

Yep, plywood is tougher than the plastic. I am curious what you are building!! is it top secret of are you going to show us ? :)

Kent, I'll be first to admit that I am not a wood guy. In my way of thinking the best use for wood is to heat my house with, But to expand on your idea of a possible wooden collet, think about using a 3 jaw scrolling chuck if it has removable top jaws. glue layers of plywood or possibly MDF like you mentioned turn out the profile to fit the wheels quite possibly a profile for both sizes but I should think the depth would be too deep to accomplish this. Before hollowing out the profile though cut the slab into 3 pie shaped pieces mill what would become the back side to resemble the mounting lugs on the top jaws drill and counter drill the holes for mounting Remove your top jaws mount the 3 pieces on your chuck and you now have a set of soft jaws which you can cut any profile into you desire. I would prefer making them out of Aluminum but there is no reason why plastic MDF or plywood wouldn't work the same way Just mill the mounting profile so the soft jaws rest lightly against the chuck face when bolted to the jaws. My mill is down or I would be happy to make a set for you if you were to send me a 3 jaw chuck to match the soft jaws to.

I would make a wooden (MDF would work well for this) 'chuck' for each sized wheel.

Basically a stack of a stub for the lathe chuck to hold glued and screwed to a circular plate comfortably larger than the outer diamerter of the wheel

Glued to that is a ring with the same outside diameter and an inside diameter sized to a tight fit with the wheel. This ring should be just a little thinner than the width of the wheel. (depending on the thickness of the MDF, you might have to glue up a couple thicknesses)

Finally there is a separate ring with a inner diameter that allows access to the center for boring, but is smaller than the wheels diameter. This is a separate piece.

This whole thing can be cut out of the sheet with a jigsaw, then assembled and trued to final diameters inside and out on the lathe to center it.

In use, the wheel to be bored is stuck inside the glued-up rings, then the loose ring bolted down to hold the wheel tightly in place. Bore out the hub, unbolt the retainer ring, pull out the wheel and go to the next one.

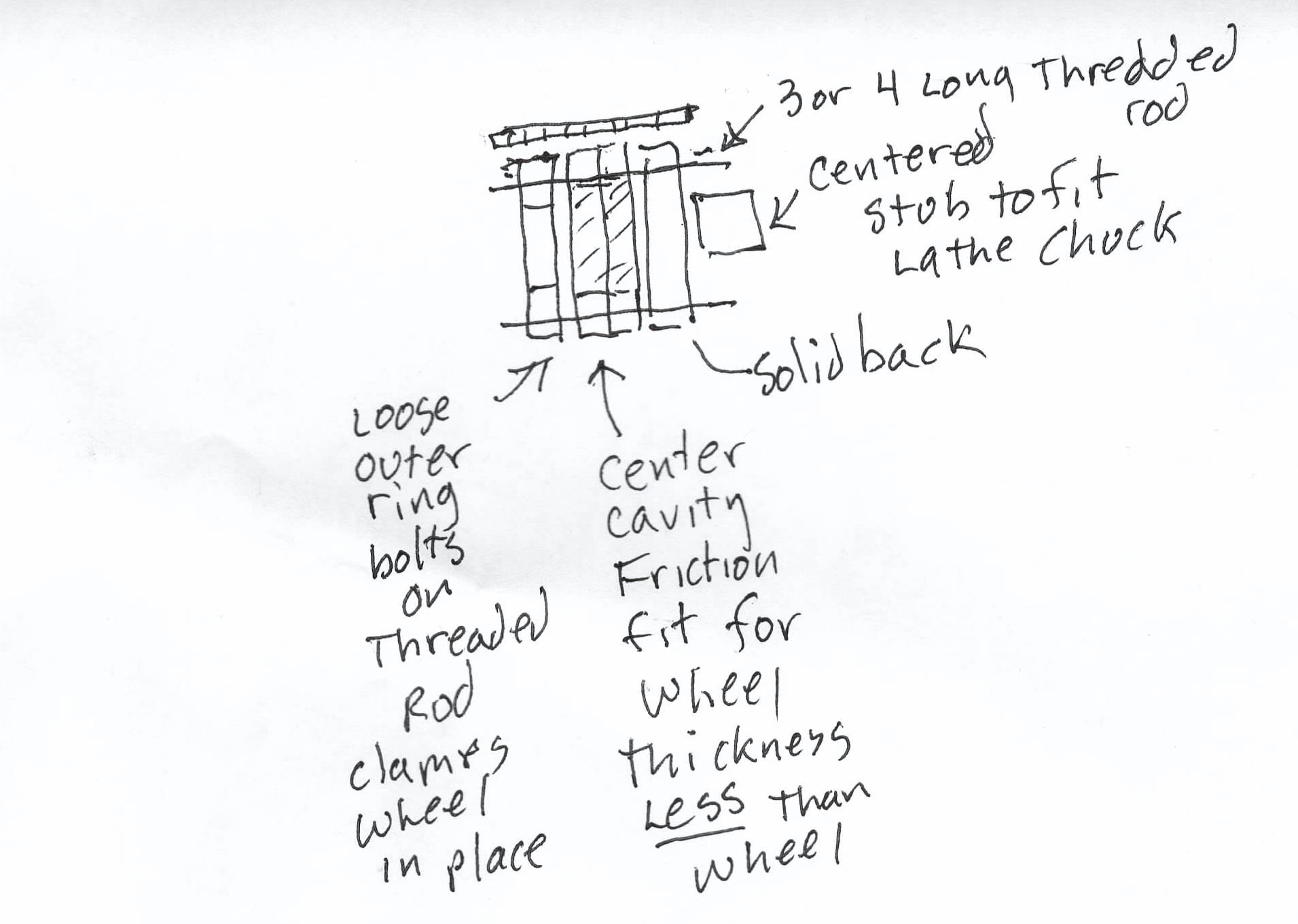

Attached is a badly drawn sketch of the assembly from the side.

Attachment 41101

Have you tried freezing the wheels and working them cold. I've done this before for UHMW wheels. Throw them in the freezer over night and then they are not as mushy. Never tried it but maybe use dry ice to freeze them faster.

Quote:

---

Originally Posted by bruce.desertrat

I would make a wooden (MDF would work well for this) 'chuck' for each sized wheel.
...snip... Attachment 41101

---

Or attach Bruce's idea to a face plate to machine the cavity to fit the wheels.
