    Revolving drill head - photos and video

    Revolving drill head.






    1:00 video:




    More: https://www.romai.de/en/machine-comp...ver-drill-head

    173 Best Homemade Tools eBook

  2. The Following User Says Thank You to Jon For This Useful Post:

    Seedtick (Jul 4, 2019)

  3. #2
    Supporting Member Crusty's Avatar
    Join Date
    May 2019
    Location
    Dry Gulch, Tx
    Posts
    749
    Thanks
    220
    Thanked 779 Times in 321 Posts

    Crusty's Tools
    Search for info about a Burgmaster - they were a real operations speed up in the days before CNC.
    If you can't make it precise make it adjustable.

  4. The Following 3 Users Say Thank You to Crusty For This Useful Post:

    high-side (Jul 4, 2019), Jon (Jul 3, 2019), Toolmaker51 (Jul 7, 2019)

  5. #3
    Jon
    Jon is offline Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    22,536
    Thanks
    7,013
    Thanked 33,516 Times in 9,389 Posts
    Quote Originally Posted by Crusty View Post
    Search for info about a Burgmaster - they were a real operations speed up in the days before CNC.
    Interesting, good call! Here we go:



    1:56 video:


    7:30 video:


    VintageMachinery.org has a good page with Burgmaster documents here: Burgmaster Corp. - Publication Reprints | VintageMachinery.org

  6. The Following User Says Thank You to Jon For This Useful Post:

    high-side (Jul 4, 2019)

  7. #4
    Supporting Member threesixesinarow's Avatar
    Join Date
    Mar 2018
    Location
    New England, USA
    Posts
    163
    Thanks
    216
    Thanked 360 Times in 97 Posts

    threesixesinarow's Tools

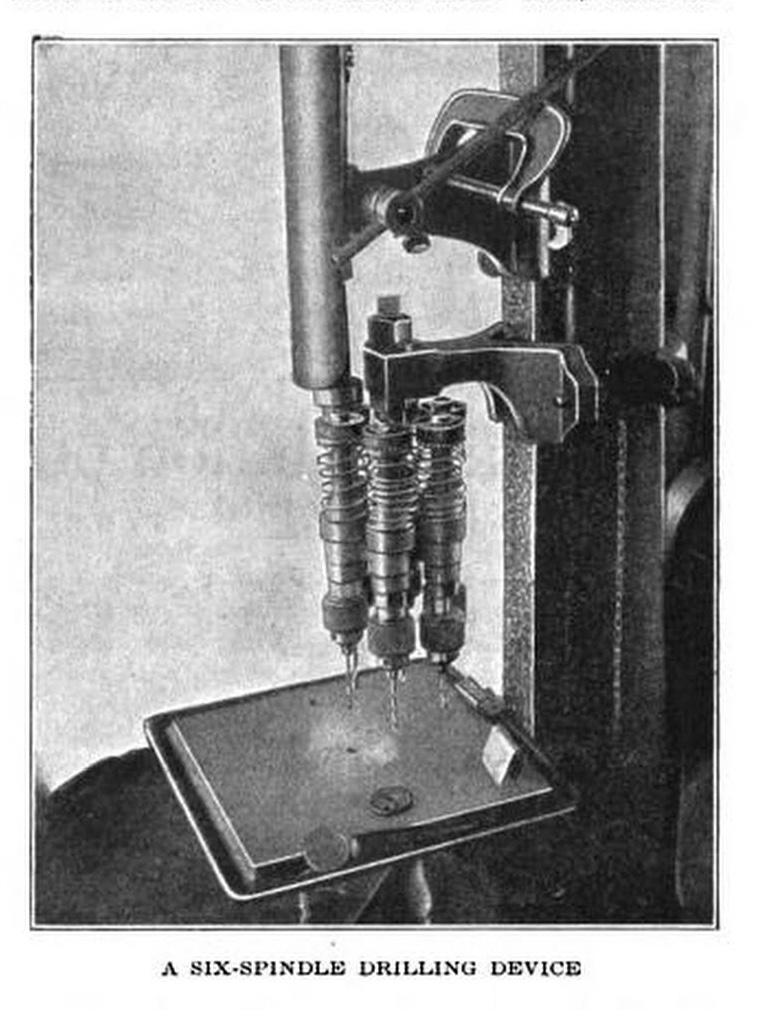

    Similar system from the 1920s by Charles Cuno of Meriden, CT, that I noticed looking for something else. I think I saw pictures of small lathes with revolving drilling tailstocks like this, too.

    Revolving drill head - photos and video-fe85fcc6-5ecd-4e43-9ede-68ebf1cb2678.jpeg

    https://books.google.com/books?id=Mr...page&q&f=false

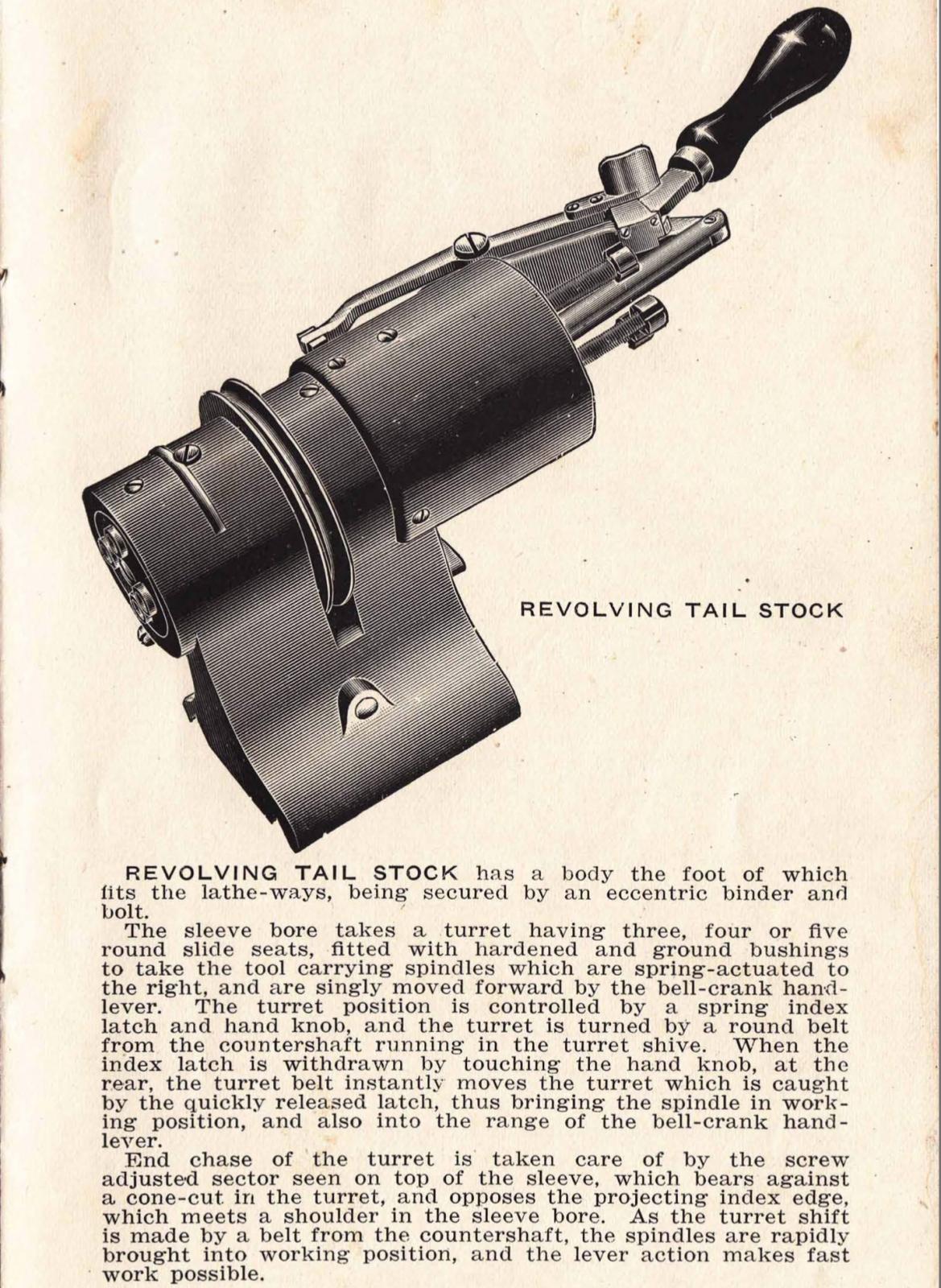

    Edit: I guess I misunderstood what the pulley was for on this Sloan & Chace tailstock - though run by the overhead belt drive it just advances the turret to the next station.

    Revolving drill head - photos and video-999a4970-0242-4b2b-a3bf-ffbb9d134a4d.jpg

    The also non-rotating Stark tumble tailstocks have a similar look to the Cuno drill, though. Stark Lathes Page 2
    Last edited by threesixesinarow; Jul 6, 2019 at 09:00 AM.

  8. The Following User Says Thank You to threesixesinarow For This Useful Post:

    Jon (Jul 3, 2019)

  9. #5

  10. #6
    Supporting Member Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    4,430
    Thanks
    6,319
    Thanked 2,603 Times in 1,644 Posts

    Toolmaker51's Tools
    Those little Burgies, I think they are model #00 had a two groove sheave. 9000 rpm for a .011 drill is far better than 3600 in a Bridgeport. A carefully organized process, in a proper fixture can still give CNC's a good race.
    1st off nothing moves 18 inches for a tool change. Like process streamlining mentioned, with a rail, the operator's positioning in concert with indexing turret.
    Time was, such workers enjoyed intense production work. I enjoyed designing tooling they could do that with.
