Advanced grinding rest and a cautionary tale

Thanks Harold,

These videos are a great help. I for one appreciate the effort you have put in. I made one of these some years ago and find it useful. It may interest you to know that it was in my (detached) garage when I had a very destructive fire in there in 2010 and it endured the attentions of three fire crews with their hoses and chemicals, and then several weeks of summer rain until I could rescue it along with other treasured items.

I have since refurbished it and I still have it. It was not possible to return it to it's original condition but I rather like it as it is and prefer it's less than pristine condition as it reminds me of a very black day. I now have to make the jigs for milling cutter and drill grinding, By the way, I love your work and have several of your books and have used the advice and guidance in my projects.

Attachment 17051

Garage Fire
(as viewed from neighbours garden)

Attachment 17052

Rest as originally made, test assembled,
but before final finishing and polishing

Attachment 17053

Rescued from debris after fire - poor thing!

I will post a more recent photograph later.

Terry, You're attachments seem to be invalid , links don't go anywhere

3 Attachment(s)

Hi Al8236,

Those were not supposed to be links, the pictures were supposed to be embedded into the posting but I see that they aren't showing.

I followed the instructions in the video on how to attach photographs and they showed up in the preview window but obviously something has gone wrong. Here is another attempt

Attachment 17056

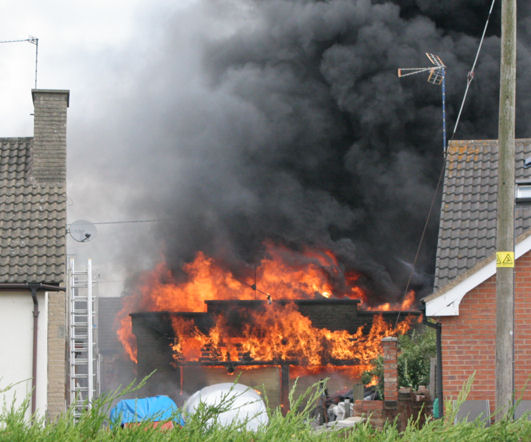

Garage fire
as viewed from neighbours garden

Attachment 17055

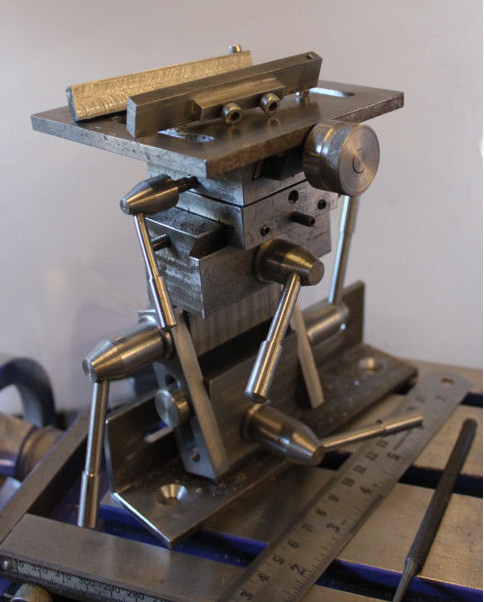

Grinding rest test assembled
before final finishing and polishing

Attachment 17054

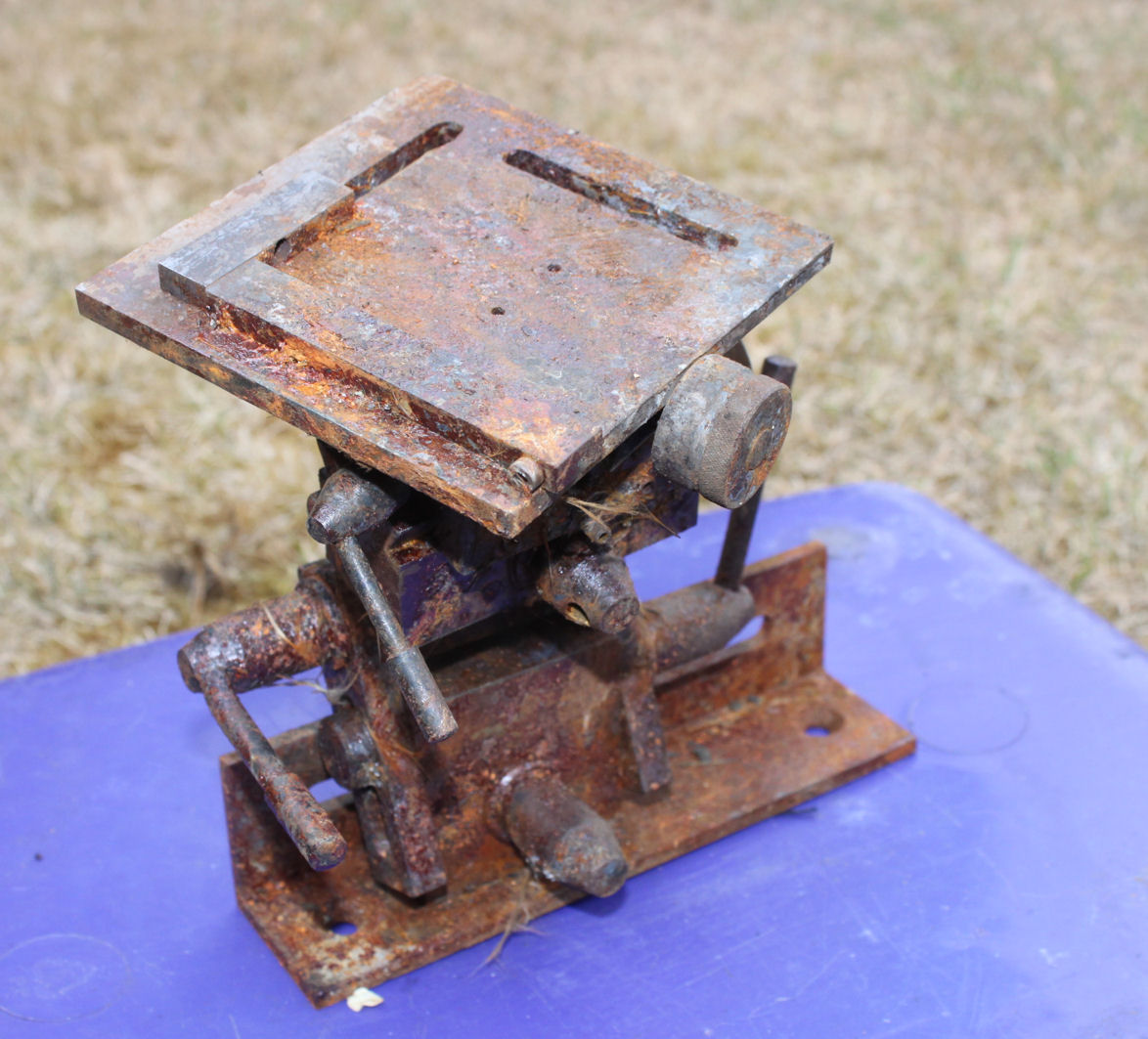

Rest as rescued after a couple of weeks
in the English summer rain!

Here goes, The preview shows all 3 photographs correctly positioned, fingers crossed.

It worked This time, I don't think that I did anything different but I'm glad that they are now showing. Gives me confidence for the future.

Best regards

Terry

2 Attachment(s)

Hi,

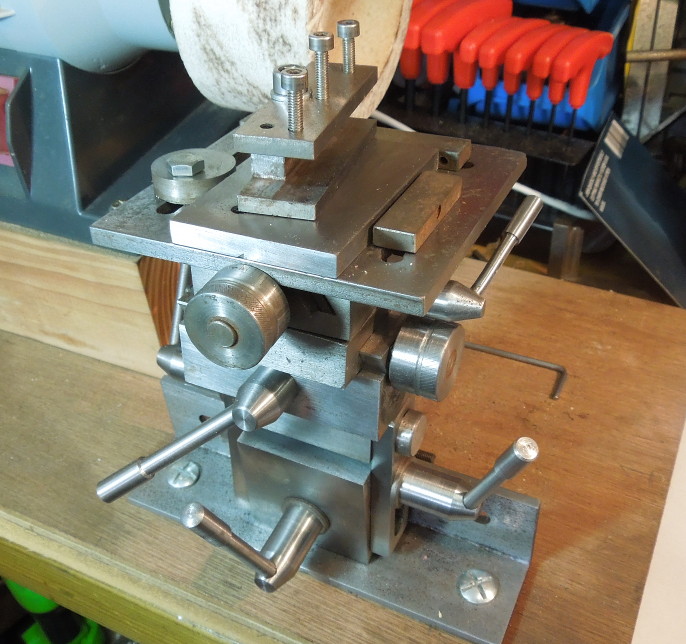

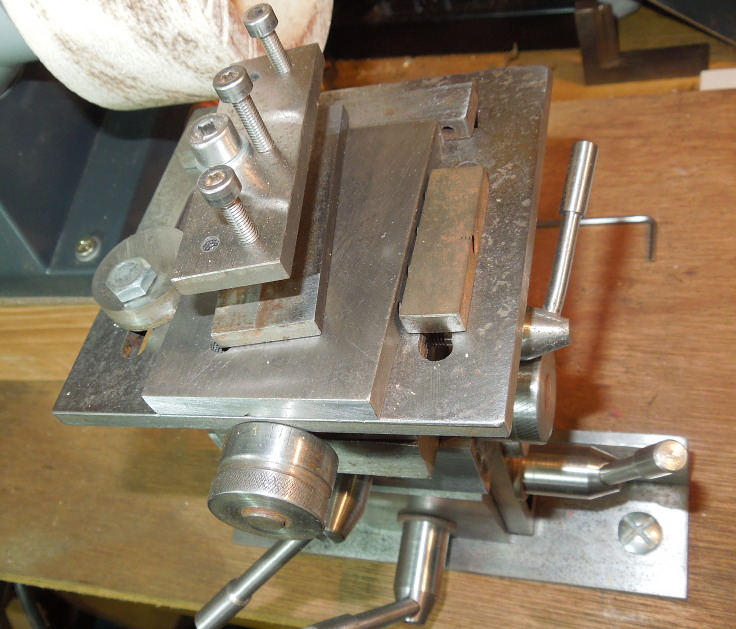

If anyone is interested, I found my pictures of my grinding rest which I renovated following the fire and weather damage shown earlier. I post them to show what is possible with an apparently hopeless case. I disassembled the rest and removed the worst of the loose rust with wire brushes and emery cloth. The deep rust was removed from the parts with hydrochloric acid and then polished with fine emery. and protected with camelia oil The latter is good enough for Japanese sword makers so it's ok for me).

I had to make some new handles as the originals were lost when the Loctite I used to secure them failed in the fire and they were lost in the debris, only one survived the ordeal. I will have to make some new adjusting knobs as the fire and rust did for the knurling but the graduations just about survived.

Attachment 17118

Attachment 17119

Regards

Terry

Well that certainly looks better than the last photo you posted, looks like a nice save!
Al

Congratulations Metaler, your Sharpening Metalworking Workshop Cutters video series is our Best Documented Build winner for March 2017!

Great comprehensive documentation in this 9-video series, plus many more on Metaler's website here: Harold Halls Videos, index .

Some other nicely-documented builds from March: a Keyway Cutting Method by Vyacheslav.Nevolya, a Damaged Thread Chamfering Tool by brianhw, a Large Radius Rolling Brake by KustomsbyKent, a Dual Fuel Melting Furnace by Carlos B, a 4 Bolt Compound Clamp by LMMasterMariner, a Limiting Resistor Selection Technique by rgsparber, an Annular Cutter Holder by bstanga, a Lathe Shear Tool by tonyfoale, and a Plaster Toolmaking Technique by tonyfoale.

Metaler - please confirm your email address via PM to me, and I'll get your $35 award sent out, via your choice of PayPal, Amazon, or bitcoin.

Congrats again! :rocker:

Here are all of our previous monthly Best Documented Build winners:

<div id="blocks"> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="http://rick.sparber.org/XYBR.pdf"><img src="/uploads/116594/homemade-x-y-backlash-reduction-method.jpeg" alt="X-Y Backlash Reduction Method"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="http://rick.sparber.org/XYBR.pdf">X-Y Backlash Reduction Method</a> <span> by <a href="/builder/Rick+Sparber">Rick Sparber</a></span> </div> <div class="tags">tags: <a href="/tag/cnc">CNC</a>, <a href="/tag/mill">mill</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/my-homemade-18-band-saw-18687#post26090"><img src="/uploads/120220/homemade-18-bandsaw.jpeg" alt="18\" Bandsaw"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/my-homemade-18-band-saw-18687#post26090">18" Bandsaw</a> <span> by <a href="/builder/mr95gst">mr95gst</a></span> </div> <div class="tags">tags: <a href="/tag/bandsaw">bandsaw</a>, <a href="/tag/motor">motor</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/diy-fume-extractor-19776#post27938"><img src="/uploads/124513/homemade-soldering-fume-extractor-4.jpeg" alt="Soldering Fume Extractor"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/diy-fume-extractor-19776#post27938">Soldering Fume Extractor</a> <span> by <a href="/builder/AMG+warkshop_2">AMG warkshop</a></span> </div> <div class="tags">tags: <a href="/tag/fumes">fumes</a>, <a href="/tag/fan">fan</a>, <a href="/tag/power-supply">power supply</a>, <a href="/tag/soldering">soldering</a>, <a href="/tag/extractor">extractor</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/making-large-axe-20033#post28518"><img src="https://www.homemadetools.net/uploads/237690/homemade-axe.jpeg" alt="Axe"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/making-large-axe-20033#post28518">Axe</a> <span> by <a href="/builder/Garage+workshop">Garage workshop</a></span> </div> <div class="tags">tags: <a href="/tag/hand-tools">hand tools</a>, <a href="/tag/forging">forging</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/adjustable-height-gantry-hoist-28188#post38349"><img src="https://www.homemadetools.net/uploads/237138/homemade-adjustable-height-gantry-hoist.jpeg" alt="Adjustable Height Gantry Hoist"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/adjustable-height-gantry-hoist-28188#post38349">Adjustable Height Gantry Hoist</a> <span> by <a href="/builder/MetalDesigner">MetalDesigner</a></span> </div> <div class="tags">tags: <a href="/tag/hoist">hoist</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="http://rick.sparber.org/AAD.pdf"><img src="/uploads/138590/homemade-rotary-table-a-axis-conversion.png" alt="Rotary Table A Axis Conversion"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="http://rick.sparber.org/AAD.pdf">Rotary Table A Axis Conversion</a> <span> by <a href="/builder/Rick+Sparber">Rick Sparber</a></span> </div> <div class="tags">tags: <a href="/tag/cnc">CNC</a>, <a href="/tag/conversion">conversion</a>, <a href="/tag/motor">motor</a>, <a href="/tag/rotary-table">rotary table</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/direct-indexing-sharpening-fixture-31319#post43293"><img src="/uploads/136090/homemade-direct-indexing-sharpening-fixture.jpeg" alt="Direct Indexing Sharpening Fixture"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/direct-indexing-sharpening-fixture-31319#post43293">Direct Indexing Sharpening Fixture</a> <span> by <a href="/builder/rossbotics">rossbotics</a></span> </div> <div class="tags">tags: <a href="/tag/sharpening">sharpening</a>, <a href="/tag/fixture">fixture</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/cnc-router-build-adept-robotic-cartesian-slides-21166-8#post44555"><img src="/uploads/137446/homemade-cnc-router-22.jpeg" alt="CNC Router"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/cnc-router-build-adept-robotic-cartesian-slides-21166-8#post44555">CNC Router</a> <span> by <a href="/builder/machiningfool">machiningfool</a></span> </div> <div class="tags">tags: <a href="/tag/cnc">CNC</a>, <a href="/tag/router">router</a>, <a href="/tag/electronics">electronics</a>, <a href="/tag/controller">controller</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/shop-built-angle-plate-33132#post46409"><img src="/uploads/138630/homemade-angle-plate-5.jpeg" alt="Angle Plate"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/shop-built-angle-plate-33132#post46409">Angle Plate</a> <span> by <a href="/builder/astroracer_2">astroracer</a></span> </div> <div class="tags">tags: <a href="/tag/angle">angle</a>, <a href="/tag/plate">plate</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/depth-measuring-base-caliper-gauge-37943#post52684"><img src="https://www.homemadetools.net/uploads/237096/homemade-depth-measuring-caliper-base.jpeg" alt="Depth Measuring Caliper Base"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/depth-measuring-base-caliper-gauge-37943#post52684">Depth Measuring Caliper Base</a> <span> by <a href="/builder/xynudu">xynudu</a></span> </div> <div class="tags">tags: <a href="/tag/caliper">caliper</a>, <a href="/tag/base">base</a>, <a href="/tag/mount">mount</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/radial-arm-saw-table-jig-39759#post55871"><img src="/uploads/144375/homemade-radial-arm-saw-table-4.jpeg" alt="Radial Arm Saw Table"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/radial-arm-saw-table-jig-39759#post55871">Radial Arm Saw Table</a> <span> by <a href="/builder/Brendon">Brendon</a></span> </div> <div class="tags">tags: <a href="/tag/saw">saw</a>, <a href="/tag/table">table</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/vice-metal-casting-3d-printed-patterns-41780#post60325"><img src="/uploads/147859/homemade-vise-casting-molds.jpeg" alt="Vise Casting Molds"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/vice-metal-casting-3d-printed-patterns-41780#post60325">Vise Casting Molds</a> <span> by <a href="/builder/MetalDesigner">MetalDesigner</a></span> </div> <div class="tags">tags: <a href="/tag/casting">casting</a>, <a href="/tag/3d-printing">3D printing</a>, <a href="/tag/molds">molds</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/diy-hacksaw-blade-handle-44952#post64528"><img src="https://www.homemadetools.net/uploads/237281/homemade-hacksaw-blade-handle.jpeg" alt="Hacksaw Blade Handle"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/diy-hacksaw-blade-handle-44952#post64528">Hacksaw Blade Handle</a> <span> by <a href="/builder/AMG+warkshop_2">AMG warkshop</a></span> </div> <div class="tags">tags: <a href="/tag/handle">handle</a>, <a href="/tag/hacksaw">hacksaw</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="http://rick.sparber.org/MCEEF.pdf"><img src="/uploads/152224/homemade-electronic-edge-finder.png" alt="Electronic Edge Finder"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="http://rick.sparber.org/MCEEF.pdf">Electronic Edge Finder</a> <span> by <a href="/builder/Rick+Sparber">Rick Sparber</a></span> </div> <div class="tags">tags: <a href="/tag/electronics">electronics</a>, <a href="/tag/edge-finder">edge finder</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/homemade-mini-jointer-using-power-planer-48091#post68583"><img src="/uploads/153680/homemade-mini-jointer.jpeg" alt="Mini Jointer"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/homemade-mini-jointer-using-power-planer-48091#post68583">Mini Jointer</a> <span> by <a href="/builder/Baijalashok">Baijalashok</a></span> </div> <div class="tags">tags: <a href="/tag/jointer">jointer</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/homemade-bar-clamp-re-bar-clamp-50301#post72206"><img src="/uploads/156217/homemade-bar-clamp-10.png" alt="Bar Clamp"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/homemade-bar-clamp-re-bar-clamp-50301#post72206">Bar Clamp</a> <span> by <a href="/builder/AMG+warkshop_2">AMG warkshop</a></span> </div> <div class="tags">tags: <a href="/tag/clamp">clamp</a>, <a href="/tag/rebar">rebar</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/dremelathe-diy-woodworking-station-51175#post73876"><img src="/uploads/157425/homemade-dremel-lathe-conversion.png" alt="Dremel Lathe Conversion"></a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/dremelathe-diy-woodworking-station-51175#post73876">Dremel Lathe Conversion</a> <span> by <a href="/builder/Tuomas">Tuomas</a></span> </div> <div class="tags">tags: <a href="/tag/lathe">lathe</a>, <a href="/tag/dremel">Dremel</a>, <a href="/tag/modification">modification</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/homemade-table-saw-29"> <img src="/uploads/159489/homemade-table-saw-29.jpeg"/> </a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/homemade-table-saw-29">Table Saw</a> <span> by <a href="https://www.homemadetools.net/builder/Tuomas">Tuomas</a></span> </div> <div class="tags">tags: <a href='https://www.homemadetools.net/tag/table-saw'>table saw</a> </div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/homemade-truck-crane-3"><img src="https://www.homemadetools.net/uploads/161801/homemade-truck-crane-3.jpeg"/></a></div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/homemade-truck-crane-3">Truck Crane</a> <span> by <a href="/builder/ibdilbert">ibdilbert</a></span> </div> <div class="tags">tags: <a href="https://www.homemadetools.net/tag/truck-crane">truck crane</a></div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/forum/quick-acting-drill-table-vice-54820#post80639"> <img src="/uploads/161713/homemade-table-vise.jpeg"/> </a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/forum/quick-acting-drill-table-vice-54820#post80639">Table Vise</a> <span> by <a href="https://www.homemadetools.net/builder/brianhw">brianhw</a></span> </div> <div class="tags">tags: <a href='https://www.homemadetools.net/tag/vise'>vise</a> </div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/homemade-tool-and-cutter-grinder-6"> <img src="/uploads/163509/homemade-tool-and-cutter-grinder-6.jpeg"/> </a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/homemade-tool-and-cutter-grinder-6">Tool and Cutter Grinder</a> <span> by <a href="https://www.homemadetools.net/builder/tonyfoale">tonyfoale</a></span> </div> <div class="tags">tags: <a href='https://www.homemadetools.net/tag/grinder'>grinder</a> </div> </div> </div> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/homemade-sandpaper-dispenser-3"> <img src="https://www.homemadetools.net/uploads/166657/homemade-sandpaper-dispenser-3.png"/> </a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/homemade-sandpaper-dispenser-3">Sandpaper Dispenser</a> <span> by <a href="https://www.homemadetools.net/builder/Tim+Pettigrew">Tim Pettigrew</a></span> </div> <div class="tags">tags: <a href='https://www.homemadetools.net/tag/sandpaper'>sandpaper</a>, <a href='https://www.homemadetools.net/tag/storage'>storage</a> </div> </div> </div> </div>

Terry
Just read about the fire. It is something we will have to face at one time or other. My heart goes out to you and your loss. I pray for better day to at least catch up some. No more fires, it hurts too much.
Nelson

Mr. Hall, and all hmt.net; we are far luckier than subsequent generations, to be able not only appreciate but generate such tools. Way too many examples of them equating 'buying' with 'building'.
Ain't no way it's the same, not even close.

1 Attachment(s)

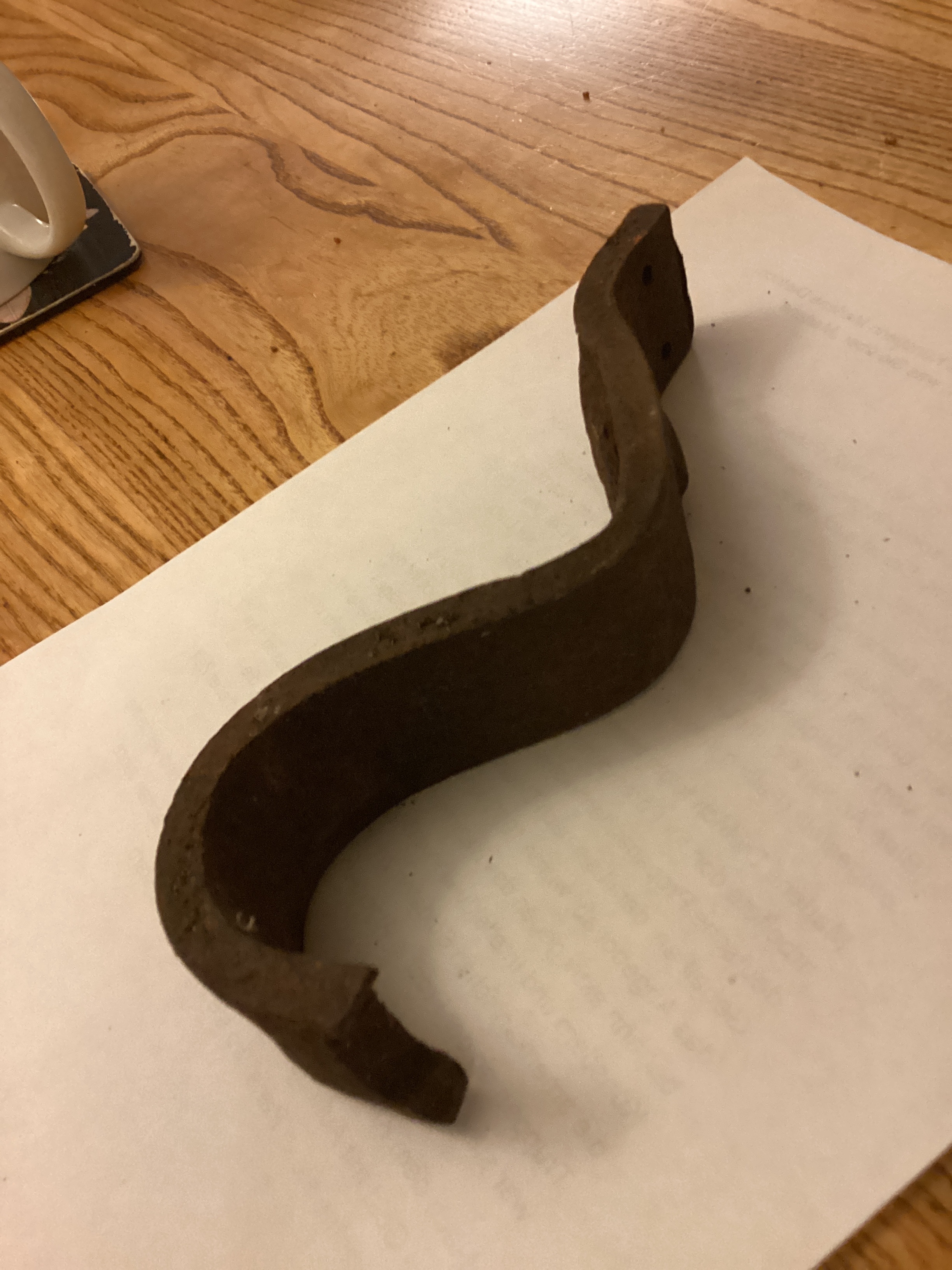

That’s a really comprehensive accessory and I can appreciate how much thought has gone into the design and cannot comprehend the number of operations to accomplish it. But “simple”? I have cheap bench grinders and the rests are very limited, and when the stone goes down to 6” diameter, they’re no good. So, with respect, Attachment 45018 this has been my simple remedy (made from a bit of garden gate) I hope you find this amusing. I was very surprised, talking to the homeengineer how long his wheels last and concluded that cheap bench grinders have very friable wheels, but don’t know.
