Thread: WHAT IS IT?! Here's an odd valve I was given . . .

  1. #1
    Supporting Member CharlesWaugh's Avatar
    Join Date
    May 2018
    Location
    Boring, OR
    Posts
    329
    Thanks
    57
    Thanked 309 Times in 117 Posts

    CharlesWaugh's Tools

    WHAT IS IT?! Here's an odd valve I was given . . .

    OK, I admit it, this isn't 'really' Tool Talk, but you guys know everything...

    I just got given this valve. It's way cool, but is missing a piece (which is fine, 'cause I'll make it into a table or something www.redirectedmaterials.com)

    It's a very mildly magnetic stainless (I guess), but is vaguely yellowish/brass-ish in color.

    It weighs a ton! Well, really only 14 pounds...

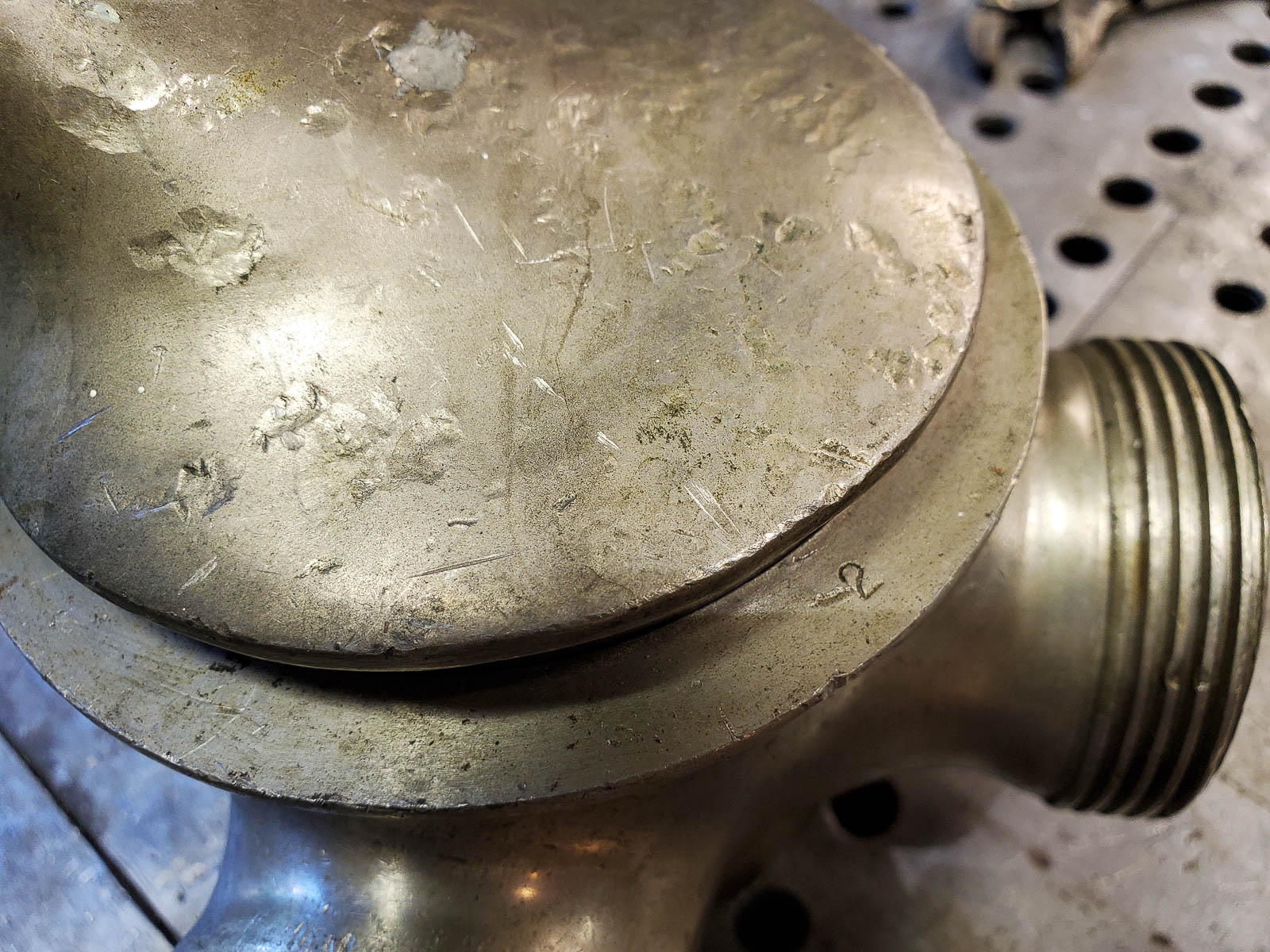

    It has been beaten on on the handle flange (see pics).

    It is has three ports and can go A-B or A-B-C, but won't do a shut off.

    The ports are about 2" dia.

    The threads on the ports are Acme.

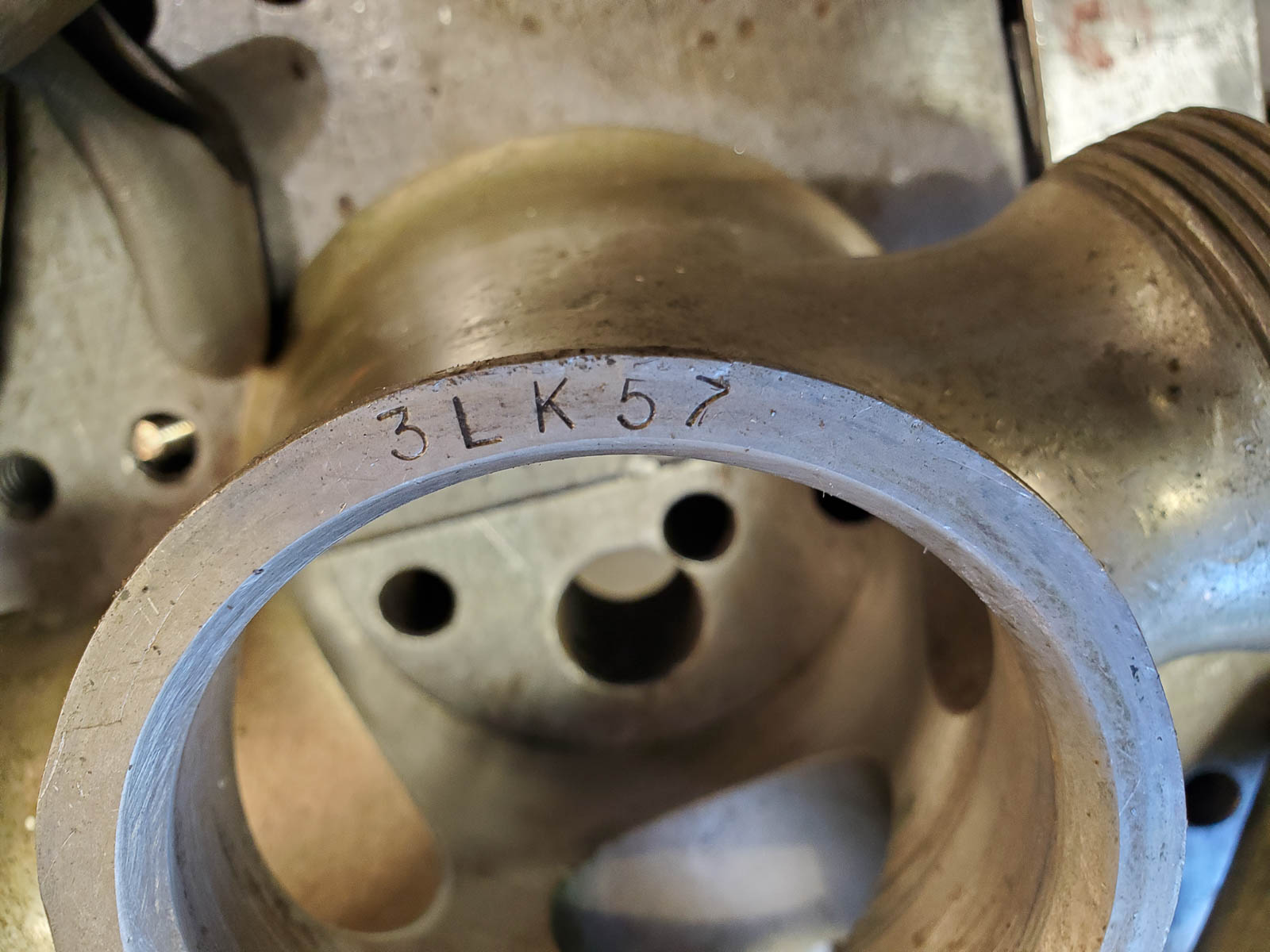

    It has two markings on the main body (see pics): 3LK57 and -2

    W H A T I S I T ? ?

    Thanks!

    Charles

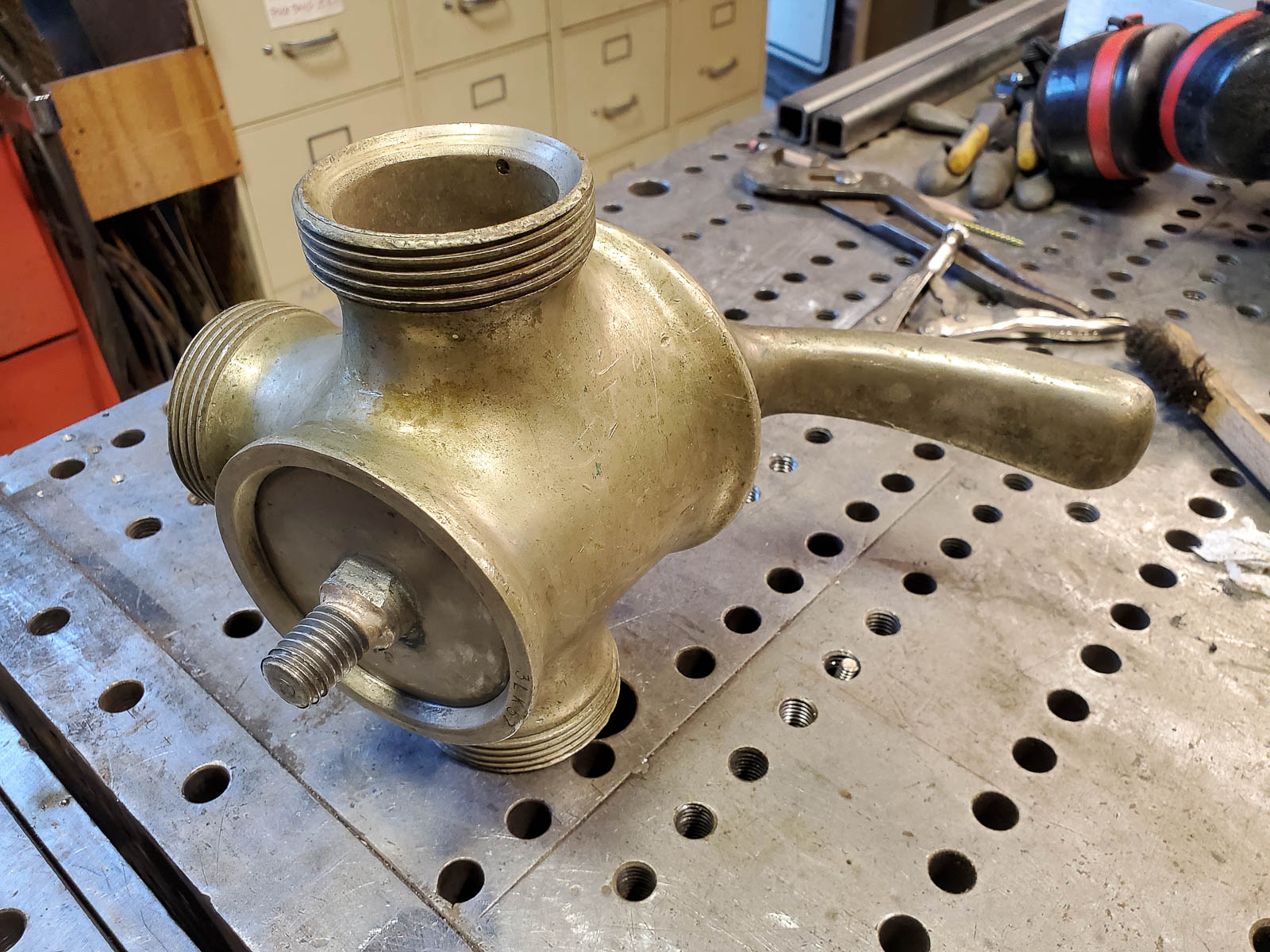

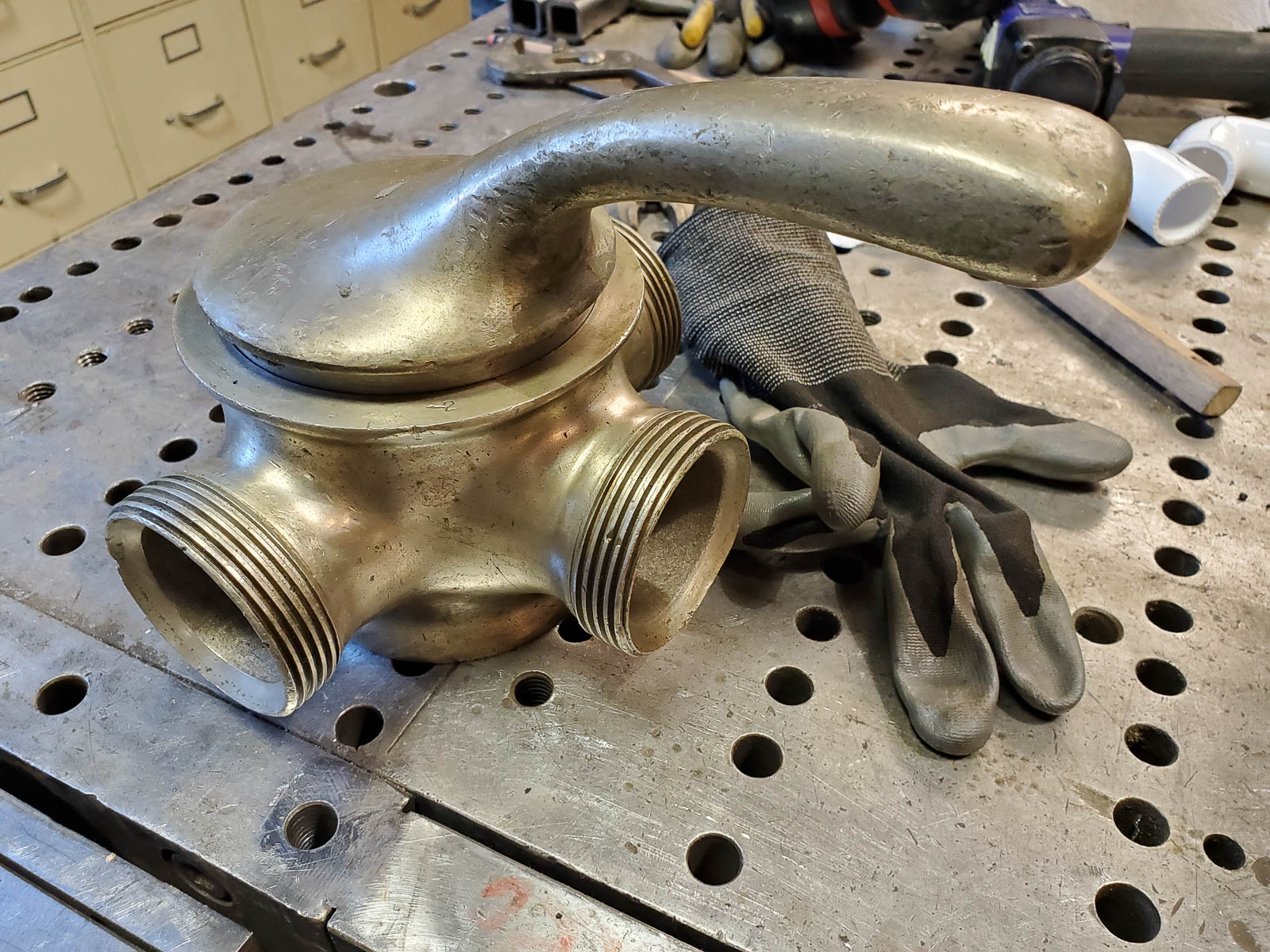

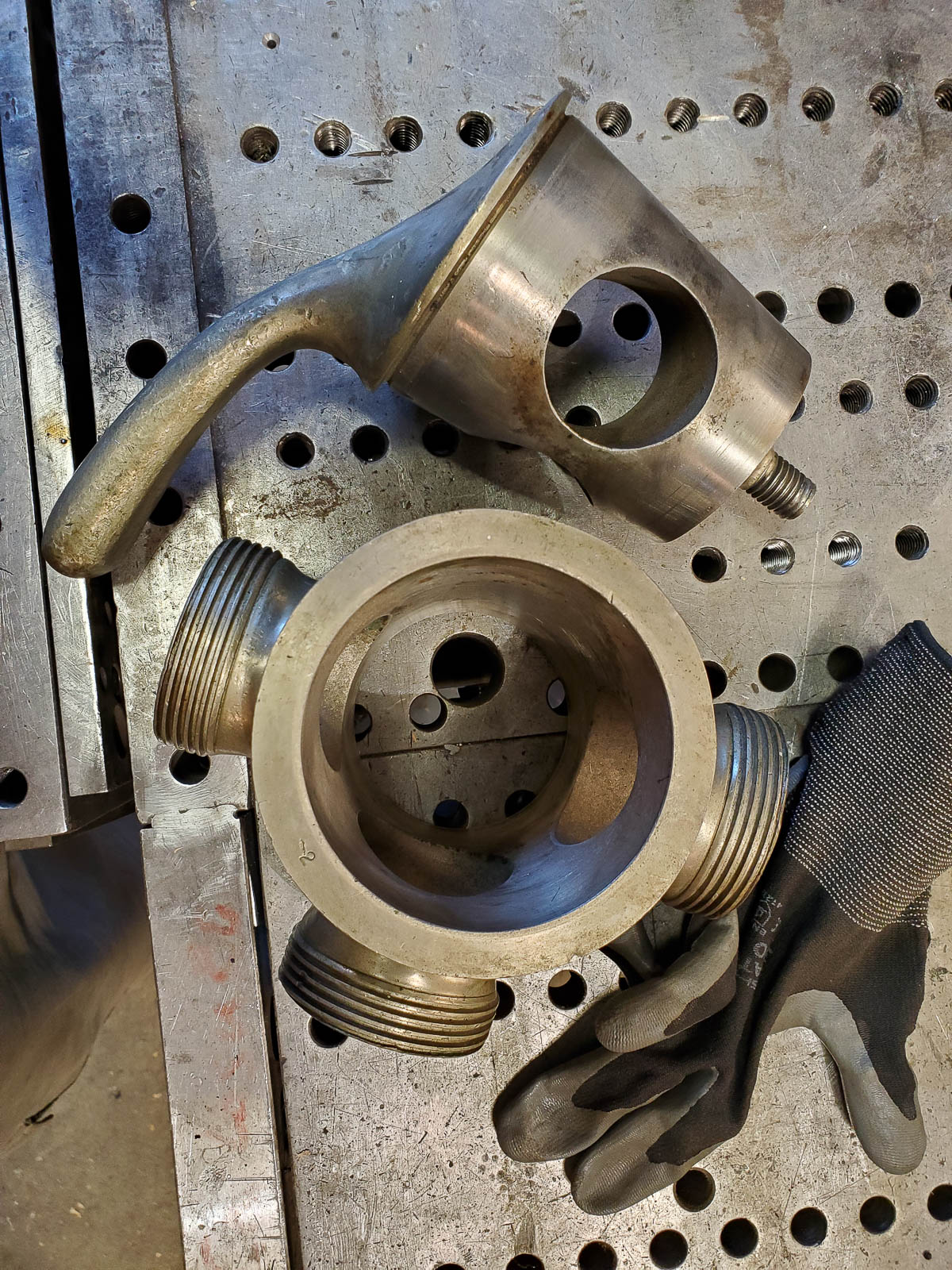

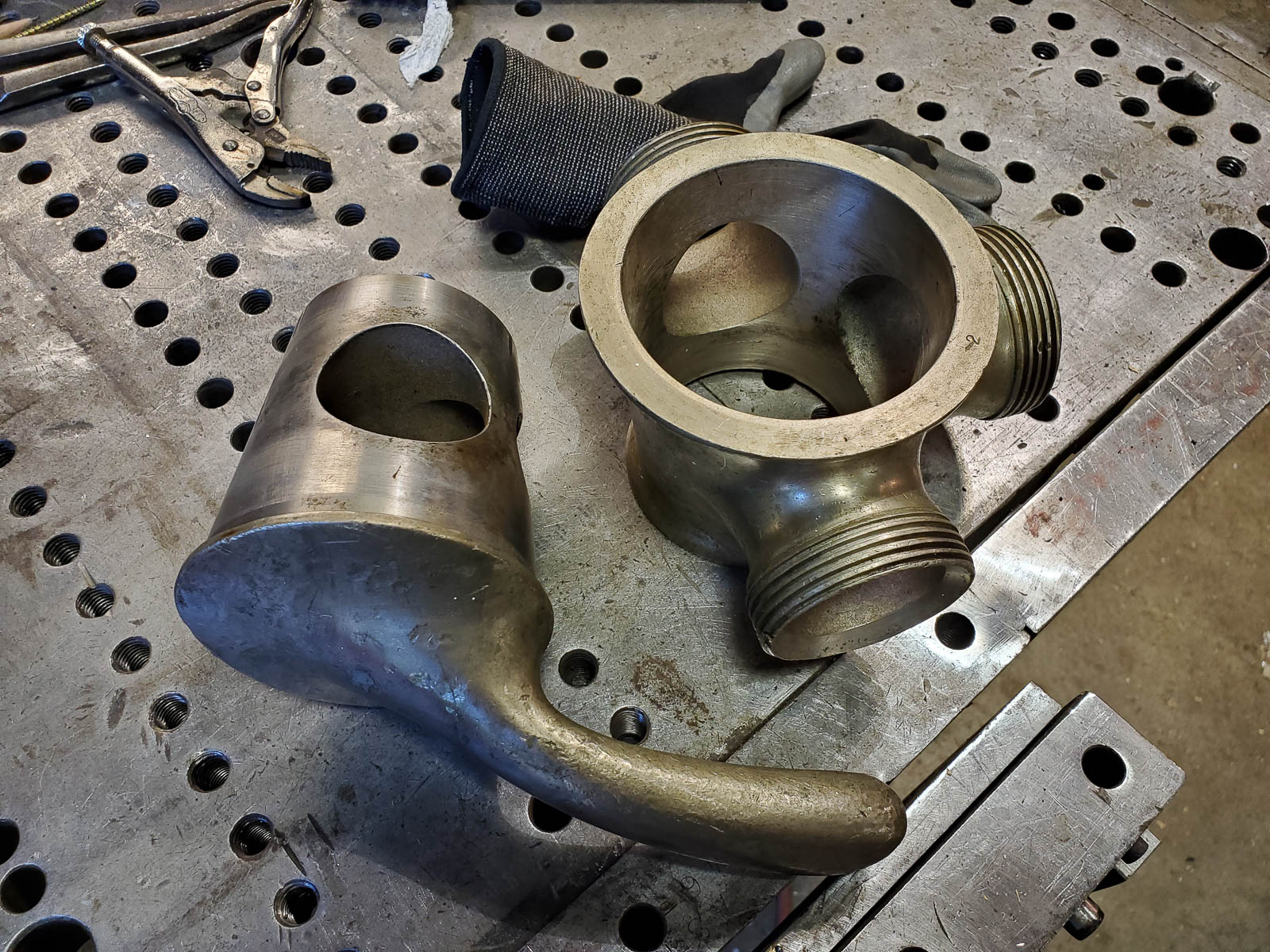

    WHAT IS IT?! Here's an odd valve I was given . . .-2020-07-08-18.34.24.jpgWHAT IS IT?! Here's an odd valve I was given . . .-2020-07-08-18.34.34.jpgWHAT IS IT?! Here's an odd valve I was given . . .-2020-07-08-18.34.39.jpgWHAT IS IT?! Here's an odd valve I was given . . .-2020-07-08-18.36.01.jpgWHAT IS IT?! Here's an odd valve I was given . . .-2020-07-08-18.35.00.jpgWHAT IS IT?! Here's an odd valve I was given . . .-2020-07-08-18.36.54.jpg

    186 More Best Homemade Tools eBook
    Last edited by CharlesWaugh; Jul 8, 2020 at 08:40 PM.
    Charles Waugh
    www.charleswaugh.com
    "Any tool is just a kit, to be modified as needed for the job at hand"

  2. #2
    greenie's Avatar
    Join Date
    Dec 2018
    Posts
    197
    Thanks
    136
    Thanked 113 Times in 64 Posts

    greenie's Tools
    Seeing as it's Stainless Steel, then it would have to be something for the Food Industry.
    I'm thinking a 'direction valve' out of a milk processing plant/dairy and the threads are for a quick attachment/threading for a hose. :-)

    2000 Tool Plans

  3. #3
    Supporting Member CharlesWaugh's Avatar
    Join Date
    May 2018
    Location
    Boring, OR
    Posts
    329
    Thanks
    57
    Thanked 309 Times in 117 Posts

    CharlesWaugh's Tools
    Greenie,
    I think you're right about milk. In searching for 'milk valve threads' I found that acme is common (various pitches, diameters, etc., depending on manufacturer) and they have a bevel-seal (just like in my pics)

    Thanks!

    This forum is way cool!

    Charles
    Charles Waugh
    www.charleswaugh.com
    "Any tool is just a kit, to be modified as needed for the job at hand"

  4. #4
    Unkle Fuzzy's Avatar
    Join Date
    Mar 2017
    Location
    Near Monkeytown, USA
    Posts
    149
    Thanks
    1
    Thanked 88 Times in 51 Posts
    The style of valve is a "Plug Valve". They use no seals except maybe a grease that also lubricates the valve.

    Used in chemical, oil, and gas industries, also by nature they tend to be pricey.

  5. #5
    Supporting Member CharlesWaugh's Avatar
    Join Date
    May 2018
    Location
    Boring, OR
    Posts
    329
    Thanks
    57
    Thanked 309 Times in 117 Posts

    CharlesWaugh's Tools
    Fuzzy,
    Yup! It sure LOOKS pricey! Just the cubic inches of stainless alone!

    I looked up 'plug valve' and found that a 2" is about $1000

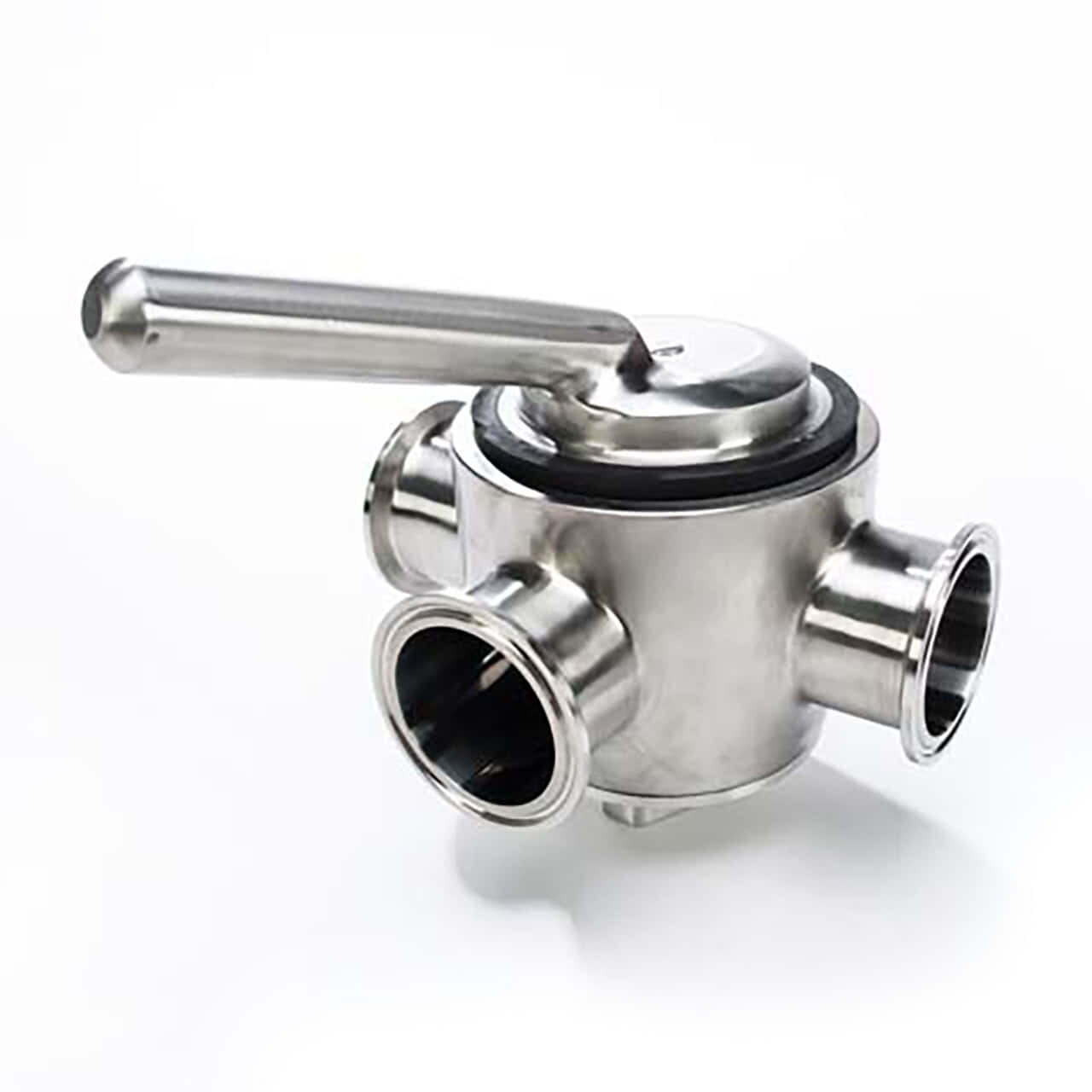

    These particular ones are used in brewing. 316 stainless:
    WHAT IS IT?! Here's an odd valve I was given . . .-ss11mpr3way_web2__40231.1571324883.jpg
    Charles Waugh
    www.charleswaugh.com
    "Any tool is just a kit, to be modified as needed for the job at hand"

  6. #6
    Unkle Fuzzy's Avatar
    Join Date
    Mar 2017
    Location
    Near Monkeytown, USA
    Posts
    149
    Thanks
    1
    Thanked 88 Times in 51 Posts
    I gave about $4,000 USD for a 4 Inch 4-Way valve in grey iron around 2014. It had about a 3 week lead time.

    Ours was a high temperature 100 psi application in a blower regenerated desiccant air dryer. It used 2 x 2400 lb desiccant tanks one drying compressed air and the offline tank regenerating by heating to 350 F with forced air flow and a 45 KW heater. It dried 1,000 cfm @ 100 psi to a -40 F dew point. If you blew the air on your skin you could feel the air suck the moisture out of your skin.

  7. #7

    Join Date
    May 2016
    Posts
    2
    Thanks
    0
    Thanked 0 Times in 0 Posts
    Quote Originally Posted by CharlesWaugh View Post
    OK, I admit it, this isn't 'really' Tool Talk, but you guys know everything...
    I just got given this valve. It's way cool, but is missing a piece (which is fine, 'cause I'll make it into a table or something www.redirectedmaterials.com)

    It's a very mildly magnetic stainless (I guess), but is vaguely yellowish/brass-ish in color.

    It weighs a ton! Well, really only 14 pounds...

    It has been beaten on on the handle flange (see pics).

    It is has three ports and can go A-B or A-B-C, but won't do a shut off.

    The ports are about 2" dia.

    The threads on the ports are Acme.

    It has two markings on the main body (see pics): 3LK57 and -2

    W H A T I S I T ? ?

    Thanks!

    Charles
    Click image for larger version.

Name:	2020-07-08 18.34.24.jpg
Views:	128
Size:	392.7 KB
ID:	35730Click image for larger version.

Name:	2020-07-08 18.34.34.jpg
Views:	122
Size:	521.6 KB
ID:	35727Click image for larger version.

Name:	2020-07-08 18.34.39.jpg
Views:	117
Size:	477.7 KB
ID:	35728Click image for larger version.

Name:	2020-07-08 18.36.01.jpg
Views:	137
Size:	388.5 KB
ID:	35729Click image for larger version.

Name:	2020-07-08 18.35.00.jpg
Views:	146
Size:	192.5 KB
ID:	35731Click image for larger version.

Name:	2020-07-08 18.36.54.jpg
Views:	146
Size:	350.6 KB
ID:	35732
    It is a pre 70’s milk valve after Mid 70’s they changes to the clamp method the valve you have had paper gasket when the threads would get weak. Also used orange solid oil for lubrication

  8. #8
    Supporting Member IntheGroove's Avatar
    Join Date
    May 2019
    Location
    Lake Tahoe
    Posts
    1,907
    Thanks
    181
    Thanked 850 Times in 516 Posts

    IntheGroove's Tools
    One way or another it's a diverter valve...

  9. #9
    katy's Avatar
    Join Date
    Jul 2019
    Location
    Red Deer Alberta
    Posts
    189
    Thanks
    89
    Thanked 103 Times in 56 Posts

    katy's Tools
    As Unkle Fuzzy said, it's a plug valve, there was lots used in the brewery that I worked in it the '70s and '80s.
