Float Lock Vise

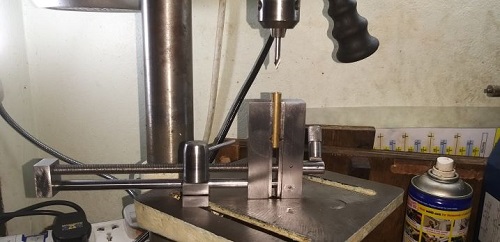

I have a regular small size benchtop drill press and I have tried a number of vises but I was not really happy. I saw Mr Pete demonstrating a float lock vise on youtube he bought at an auction, it seemed quite big for my little drill press so I decided to make my own to match the table size.

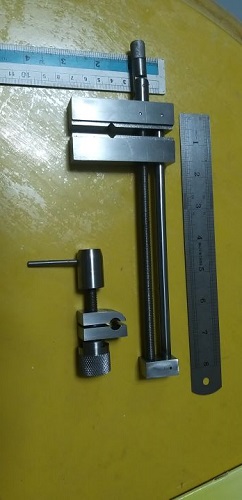

The jaws are from 3/4" square mild steel x 3" long. I used 8mm rod and cut a 8 x 1.25mm thread for the screw. For the shaft I used a 8mm hardened shaft from a printer. The other parts are all from mild steel.

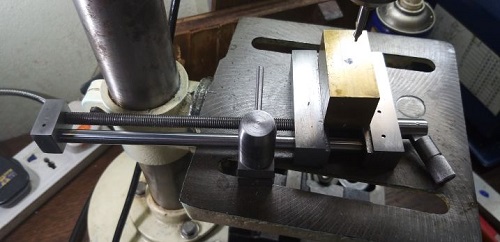

Attachment 30602 Attachment 30604

Attachment 30603

Here is a video of it

https://drive.google.com/file/d/1-wE...ew?usp=sharing

That's very nice; might it be possible to get higher-res versions of those pictures? (or at least the second one)

<!-- BEGIN /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->
Thanks Dbj58! We've added your Float Lock Vise to our Vises category,
as well as to your builder page: Dbj58's Homemade Tools. Your receipt:

<div id="blocks"> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="http://www.homemadetools.net/homemade-float-lock-vise"> <img src="/uploads/225530/homemade-float-lock-vise.jpeg"/> </a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="http://www.homemadetools.net/homemade-float-lock-vise">Float Lock Vise</a> <span> by <a href="http://www.homemadetools.net/builder/Dbj58">Dbj58</a></span> </div> <div class="tags">tags: <a href='http://www.homemadetools.net/tag/vise'>vise</a> </div> </div> </div> </div>
<!-- END /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->

I like it! Can you clarify what I think I'm seeing?

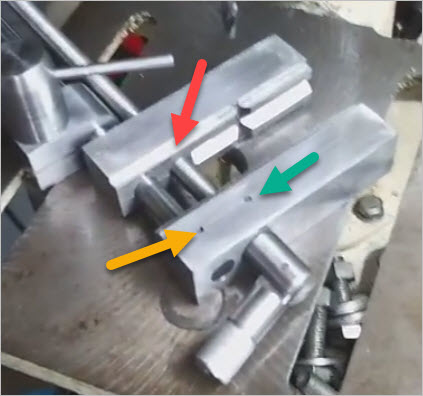

- red arrow = vise block tapped to match threaded rod?
- orange arrow = dowel pin through the slider rod to retain it?
- green arrow = ? looks like a pin but off to the side? I would think the vise block has a ID slightly over the thread rod OD? Can you elaborate on this or show the parts disassembled? Or a sketch?


Attachment 30605

bruce.desertrat,

Thank you, here is a link to my google drive where all the photos are. If you want dimensions I can do you a rough drawing for you.

https://drive.google.com/drive/folde...pl?usp=sharing

petertha,

you are correct the moving jaw is tapped to take the screw (red arrow), the yellow arrow is a retaining pin for the rod there is one on the other end as well to secure the bottom, the green arrow is also a retaining pin for the screw and you are correct about placement. It is a 2mm pin and it is drilled at 4mm from center on an 8mm hole, I cut a groove in the screw that it slides into. I have a picture on my google drive showing the pin, offset and screw thread groove. Here is the link
