Precision Angle plate & V-block

NOTE: The following tools are neither from my shop nor my hands.
Just wanting to share some odd experiences...

Short background: Graduation time's up at the Uni where I work,
and the other week I was given a small gift from a Master Grad, Ruben
who've been a constantly curious, inquisitive and resourceful student/ guest in my shop:

Attachment 35323

No small gift: A C.E. Johansson (Yep - where the Jo Blocks came from) 25-50 mm grimy micrometer.
He'd bought it in the worn-out original cardboard box at a flea market for 2 bucks...

1 hour of cleaning, lubing ("Pjur" silicone oil for "sex toys" from the drug store*) and final adjustment:
Right on the money - much better and more nice feel than my Chinese one of the same range.

Today Ruben caught me in a corridor between two meetings, showing the contents of his hands with a question:
-Johan, if you can tell me what these things are - you'll get them!

Attachment 35324

I instantly spotted the over-engineered precision angle plate and the V-block
(though I've never before seen any of those in my meagre life),
and totally lacking impulse control, I blurted out the apparently correct reply.
He seemed satisfied as he smiled, dumped them over to me and vanished down the corridor.

Attachment 35325 Attachment 35326 Attachment 35327

Info is scarce on the pieces: Bought in a flea market in small town close to Stockholm,
previously habitated by small and big industries until the many crises thru the last 40 years.
Probably the result from an (assumed) apprentice "A. Eriksson" stamped in the vee.
Assumption based on the odd-ball dimensions, though the work itself & grinds are flawless,
they've also suffered some abuse from tools and handling thru the years.

1st (crude) Measures:
Angle plate: 102,5 mm wide. 85,9 high x 22,5 thick. 75,05 deep x 18,0 thick.
Its T-slot: 13,8 wide by 4,2 mm high at bottom - slot 7,3 wide by 3,3 deep
Clamp holes: M4 with 3 rows of c-c:s 16 x 32 mm on each side

V-block: 39 x 38,25 x 45 mm high, a two piece deal, hardly recognizable: pinned and bolted construction,
internally transversely and centrally offset cut V-groove.

Just wanted to share what Providence turned up (for free) to yours truly,
while I was still desperately looking for a hardened wrist pin for a cylinder square!
The pieces' final squareness and hardness measures will have to wait 'til my vacation starts in 2 weeks,
when I'll completely geek down and at last return to my walk-in closet workshop!

Cheers
Johan "The Happy Cheapskate"

* I even got some odd looks from the cashier, when I told her that the lube was for some "unconventional" Adult Toys.

The angle plate is a most interesting tool and seems well made.
Thanks for posting it!

I predict you will tool-up a pair of yoke clamps for the Vee groove. People sweat under cutting the lugs for each side, so don't.
Drill larger than max effective size Vee holds [minding that increased centerline].
Stand up and tap for a clamp screw.
Rotate 90°, drill and ream for a press fit dowel.
Mill across that hole from clamp center an opening just wider than the block.
Press short pins through either side.
Saw off bridge at scrap end, and finish.
If undercutting is desired, a decent Woodruff cutter will do. Hold the part up right in slotted, temporary jaws.
Either way, a pair is worthwhile. Allows re-setting one while other stays in place.

Toolmaker51,

If I understand your suggestion correctly you are recommending using dowel pins in place of the usual 90 degree lugs. Wouldn't the clamps when loose in the slots tend to pivot on the dowels and tip to the side instead of standing up as a normal v-block clamp would?

Quote:

---

Originally Posted by old_toolmaker

Toolmaker51,

If I understand your suggestion correctly you are recommending using dowel pins in place of the usual 90 degree lugs. Wouldn't the clamps when loose in the slots tend to pivot on the dowels and tip to the side instead of standing up as a normal v-block clamp would?

---

They would 'lay down' to some degree, unloaded, tipping inline with Vee. At same time, being hard with minimal contact, slide easily, not shifting or bind when tightened.

Thanks you guys for cheering and machining tips for saddle clamps-
very unusual and clever solution with hardened dowel pins for lugs!

I think I'll make a few after complementary checks for perpendicularity and flatness.
The "front" clamp (3rd pic from last) seems made through benchwork only,
very intricate profile and I assume the screws shows forms from the forties or fifties.

The hold-down screw has a small anvil towards the milled and relieved ledge,
anybody having a guess what (<15 mm thick) it was intended to hold 15 mm from the bottom surface?
The top knurled screw, as well as the angle's top back shows witness marks from a few milling attempts.

The angle's sides are not equally thick though - they both "thin out" some 5/100s of a mm from root to edge.
I wonder what intended height the top V-groove was intended for, with what diameter for its rod?
Interesting to see the angle's deviations/ tolerances and whether they can/ will be corrected...

ATB
Johan

Another way to make low profile clamps...

https://www.homemadetools.net/forum/...9090#post70110

Quote:

---

Originally Posted by DIYSwede

Thanks you guys for cheering and machining tips for saddle clamps-
very unusual and clever solution with hardened dowel pins for lugs!

I think I'll make a few after complementary checks for perpendicularity and flatness.
The "front" clamp (3rd pic from last) seems made through benchwork only,
very intricate profile and I assume the screws shows forms from the forties or fifties.

The hold-down screw has a small anvil towards the milled and relieved ledge,
anybody having a guess what (<15 mm thick) it was intended to hold 15 mm from the bottom surface?
The top knurled screw, as well as the angle's top back shows witness marks from a few milling attempts.

The angle's sides are not equally thick though - they both "thin out" some 5/100s of a mm from root to edge.
I wonder what intended height the top V-groove was intended for, with what diameter for its rod?
Interesting to see the angle's deviations/ tolerances and whether they can/ will be corrected...

ATB
Johan

---

IIRC, mklotz & Tony Foale presented formulae to determine maximum effective round size for a Vee. Seems to me, 70% of full distance across as a chord reveals that diameter. I have near 0 luck with searches herein.
Far as center height, that changes with each diameter; the block may have been made for a size that matched a steady or center.

I certainly don't remember making such a calculation.

If we want to determine the maximum size of cylinder the block can accommodate* we have to first establish the measuring configuration. Just spitballing, I would think something like...

The chord between the two points of tangency of the cylinder with the V should be at least X distance below the line defining the width of the V opening. X might be defined as a percentage of the depth of the V measured perpendicular from the opening to the vertex.

Of course, the angle of the V would need to be specified. Most are 90 degrees but 60 degree exist.

Seems like we're not the only ones confused by this issue...

https://www.practicalmachinist.com/v...y-mean-297809/

--
* A tacit assumption here being that the cylinder may not be supported on the ends of the V but rather must be enclosed within the V.

Quote:

---

Originally Posted by mklotz

The chord between the two points of tangency of the cylinder with the V should be at least X distance below the line defining the width of the V opening. X might be defined as a percentage of the depth of the V measured perpendicular from the opening to the vertex.

Of course, the angle of the V would need to be specified. Most are 90 degrees but 60 degree exist.

Seems like we're not the only ones confused by this issue...

https://www.practicalmachinist.com/v...y-mean-297809/

--
* A tacit assumption here being that the cylinder may not be supported on the ends of the V but rather must be enclosed within the V.

---

-So, for maximum dia "2r" to fit in a given V-groove (with included angle 2a),
the dia's top must not have a greater stick-up than r+r sin a?
Or your "X" is at least (r sin a) below the top of the V?

Am I mistaken this late night after a full week's work?

But before that - to even get the angle, I'll first need two dowels of different dias,
a surface plate and an indicator with stand just to get started...:)

Cheers

Johan, "merely Pure Obsessive"

I was suggesting that once X is defined by someone, not me, its definition could be used to deduce, via geometry, the largest diameter that would be consistent with that value of X.

I'm not proposing that what I wrote is the correct (or only) way to specify cylinder size for a V block, just that it's a possible one.

Marv, I wasn't picking - merely trying to state a formula for establishing the max dia to sit in the V,
rather than to ride its edges.
Then - I jokingly stated what's needed to establish the angle.

Admitted - late here in Stockholm, I gotta get some sleep too.

-'Night, Gentlemen!

Yet another (hopefully humoristic) slight detour from the topic of this thread,
I want to share Example 7, "Solving Right Triangles" from the following:

https://opencurriculum.org/5483/appl...ht-triangles/:

Attachment 35337

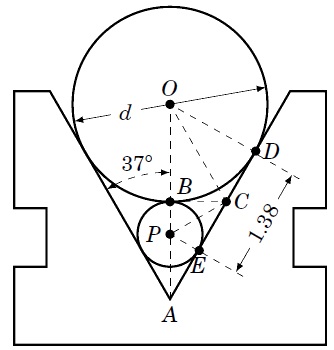

"The machine tool diagram on the right shows a symmetric V-block,
in which one circular roller sits on top of a smaller circular roller.
Each roller touches both slanted sides of the V-block.
Find the diameter d of the large roller, given the information in the diagram."

Theoretical engineering at its best! Data given is assuming the following:
First: Just make the rollers such that they only have an infinitesimally thin line of contact between each other,
while both having same against the V-groove's sides (Piece of cake...)
Next: Measure the distance between the two roller's contact points at the V-groove,
where its included angle is 74 degrees...

Reminds me of similar phrases from my books some 40 years back:
"Omit friction, aerodynamic loads and the beam's own weight in your calculations."

Theoretical engineering! The operative scope of Unlimited Resources, like an infinite diameter range of gauge pins.
Suggested method by percentage looking better all the time...measure width, know 1/2 the included angle, get the sine.
Occurs to me, while two contacting pins quite hard to determine, two decent size cylinders measured separately would achieve result easily.
But then; it's 0145 Pacific Time...

On-topic now, just a refresh of Doug's excellent and beautiful build from 2 years ago:

https://www.homemadetools.net/forum/...le-plate-66936

Question unrelated to the above link:
-All you users of these angle plates, how do you keep all those screw holes, t-slots and undercuts clean,
as not to bring grinding dust or other Schmutz to your meticulously cleaned surface plates and mag chucks?

Tips welcome, as always.

Odd-ball line of thought:
-I remember spraying shaving foam into the coolant channels when refitting auto engine heads waaay back-
as I didn't want any eventual remaining debris from them to drop into the refurbished cylinders.
Good enuff to hold the stuff in during refit, then drying up into nothing overnite.
A final blast of air thru the channels would show up nothing, but better safe than sorry.
