    Prop and shaft test box...RC aircraft

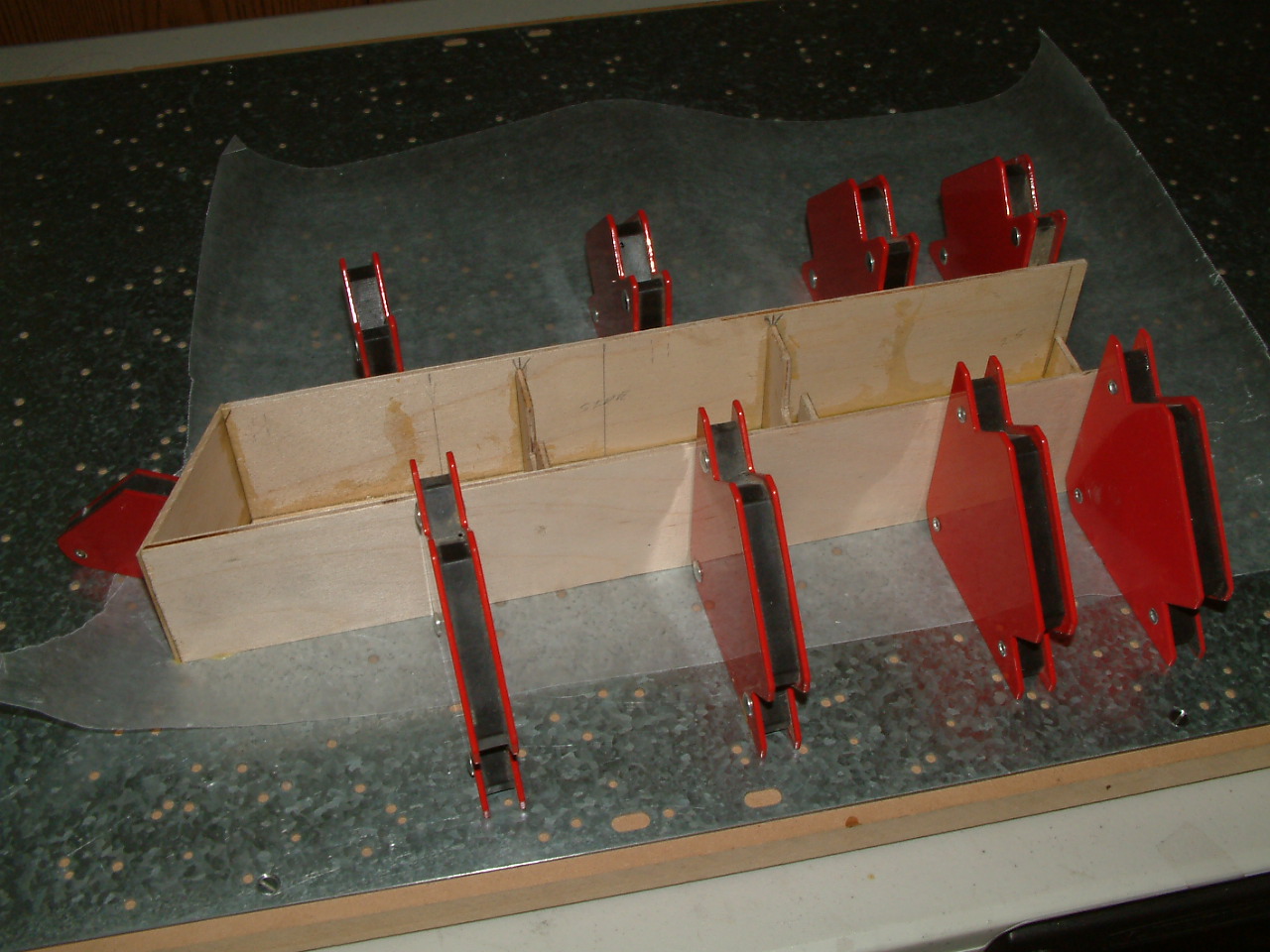

    This is just a fixture for testing motors and shafts that will be used on the xb-35. Basically just a box that will mount on the thrust stand shown by the link below. It also details one use of the magnetic building board.

    http://www.homemadetools.net/forum/r...4243#post79589

    I just use small c-clamps to hold the motor, shaft, and bearings so they can be vibration tested.
    The building board is shown in detail in the following thread:

    http://www.homemadetools.net/forum/m...-project-56618

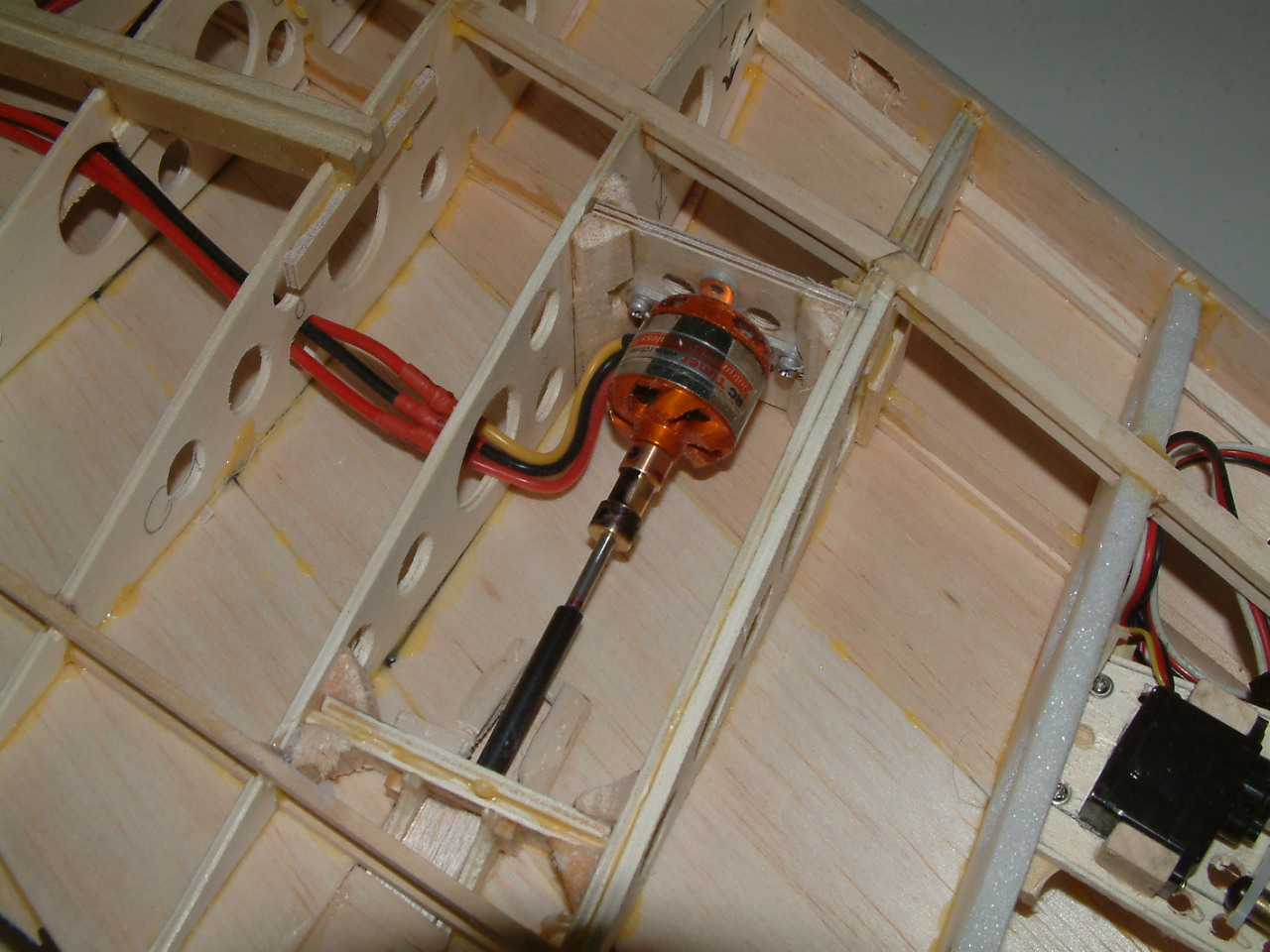

    Most of the motor assembly can be seen in the pictures attached however I did not take any photos while the motors and shafts were in the test box.

    Cheers, JR
