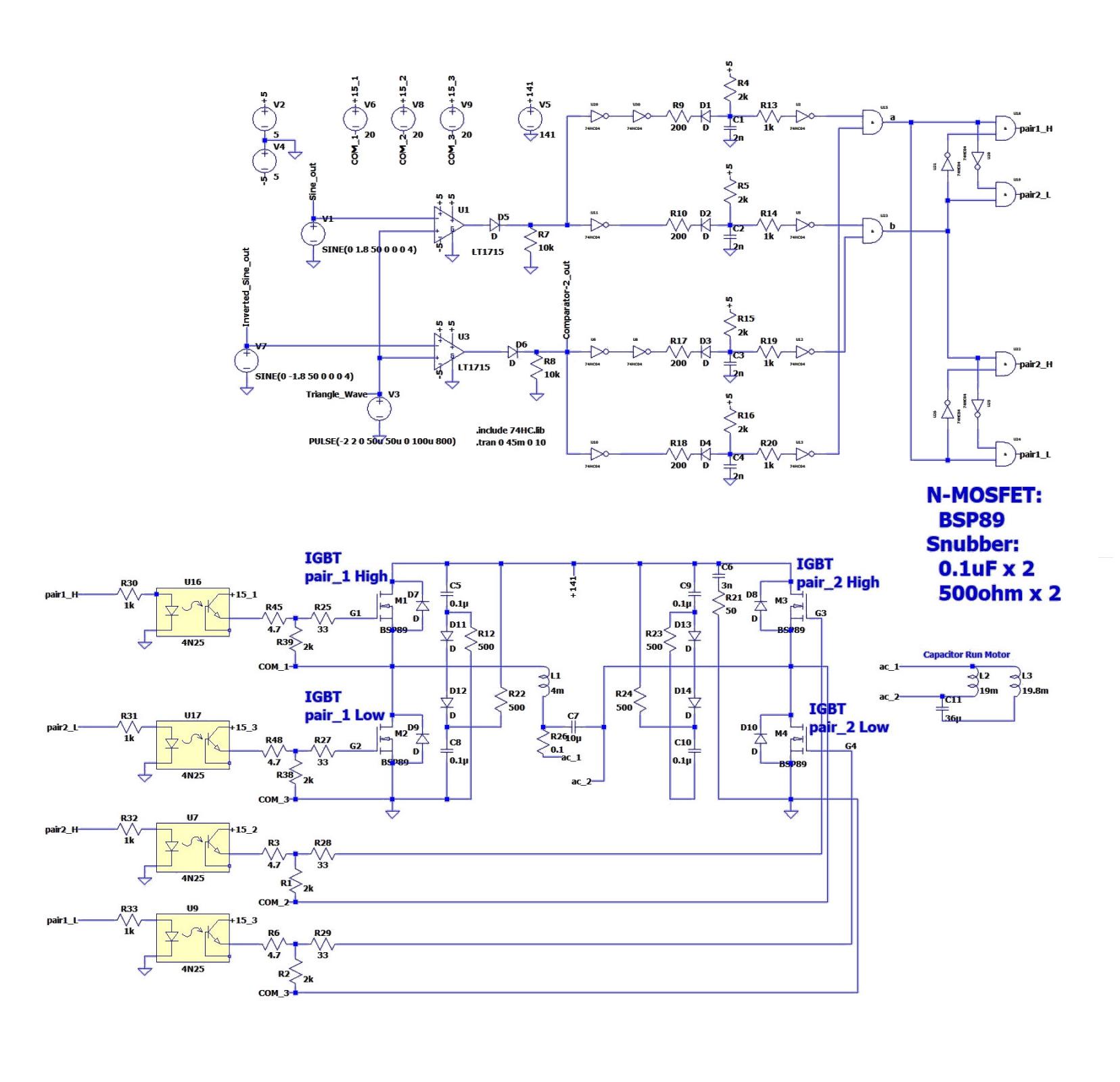

    Schematic after the power unit is as follows;
    Variable Frequency Drive for a larger factory fan-pwm_r020319.jpg
    showing a LT-spice view, where the triangle, sine wave generators are replaced with a simple built-in parts of LT-spice.

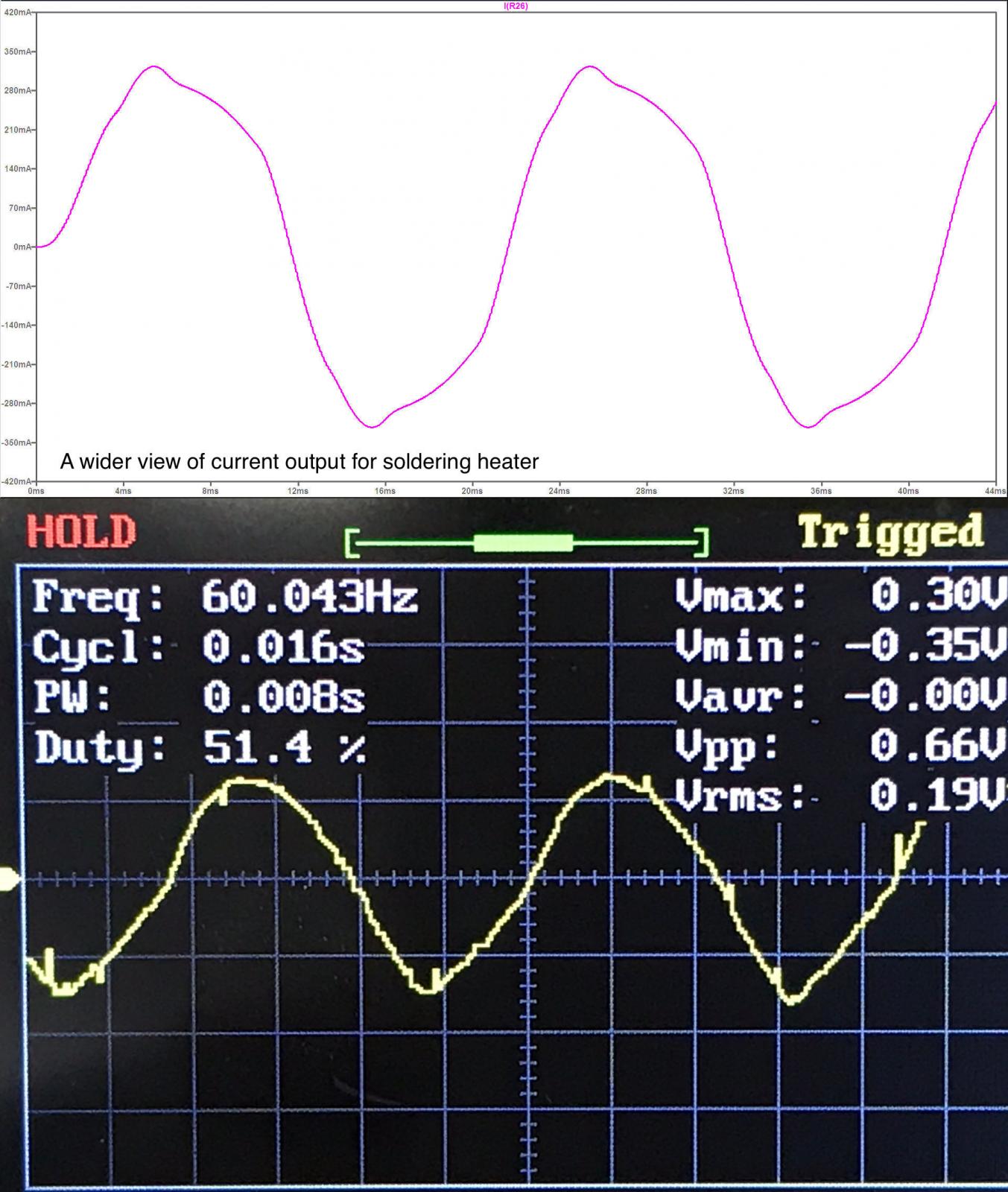

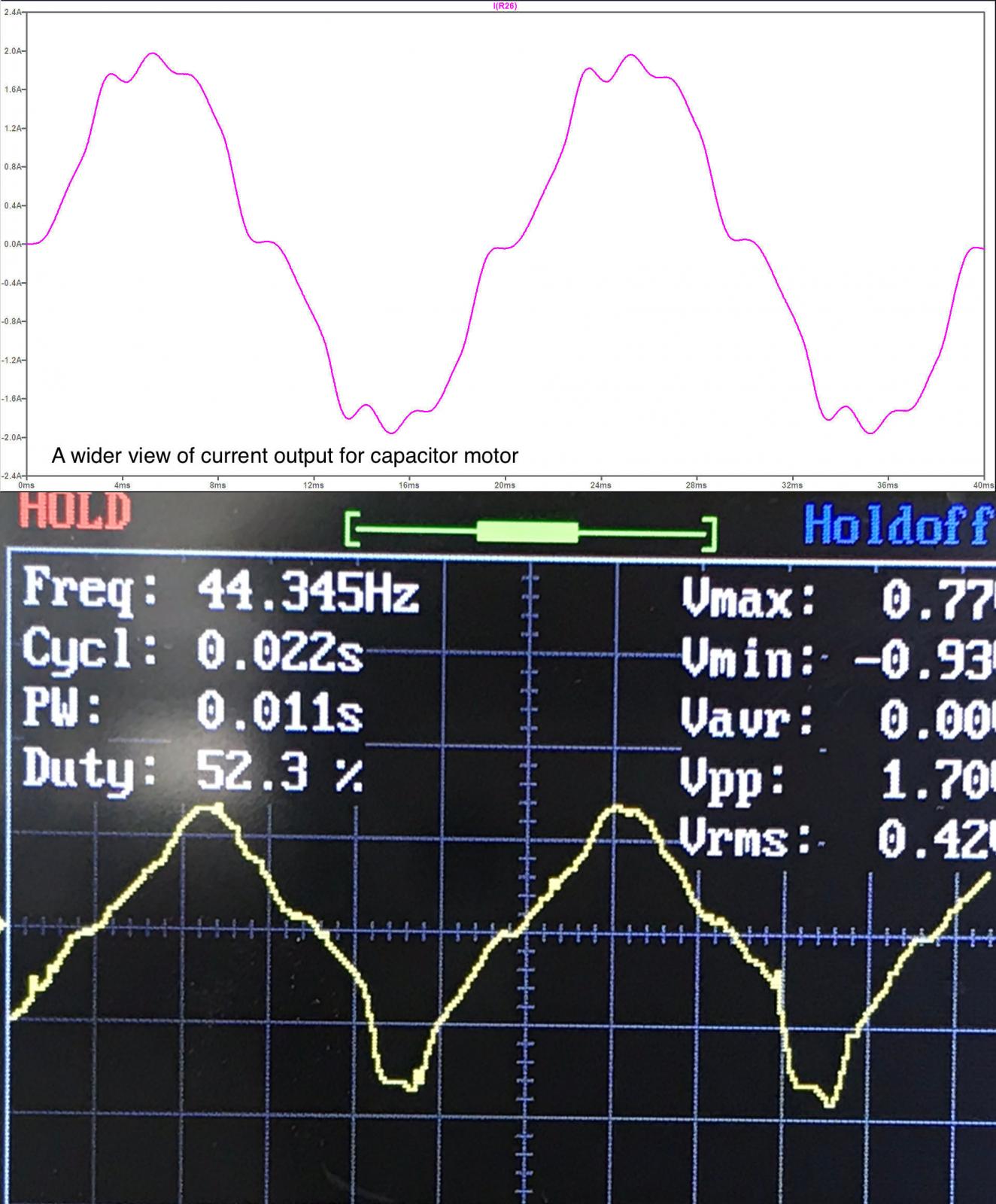

    Output wave in LT-spice simulation (red lines), and a couple of real ones (oscilloscope views) here;
    Variable Frequency Drive for a larger factory fan-2020319_301-1-.jpg

    Variable Frequency Drive for a larger factory fan-2020319_302-1-.jpg

    Chy
    Last edited by chy_farm; 07-30-2020 at 08:50 PM.

  3. #13
    Supporting Member chy_farm's Avatar
    Join Date
    Apr 2018
    Location
    Yokohama, Japan
    Posts
    115
    Thanks
    55
    Thanked 181 Times in 53 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    chy_farm's Tools

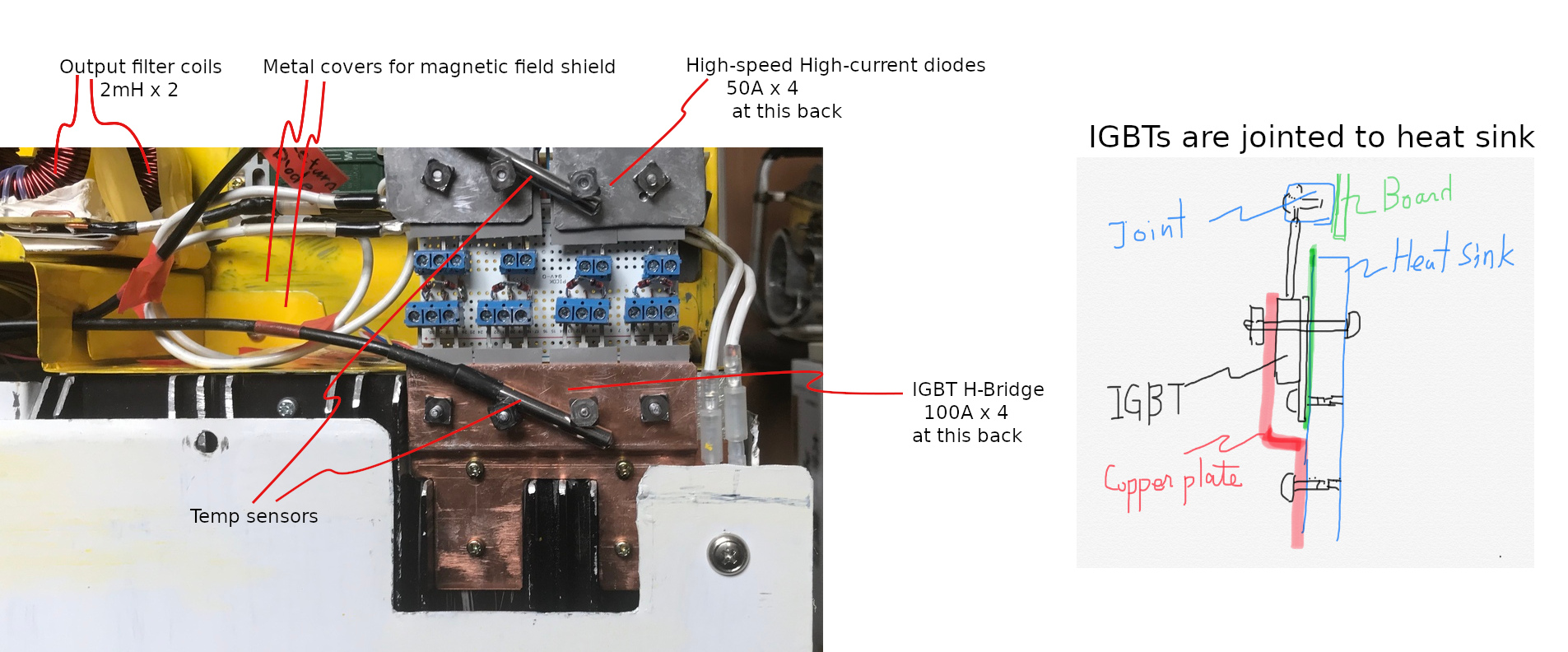

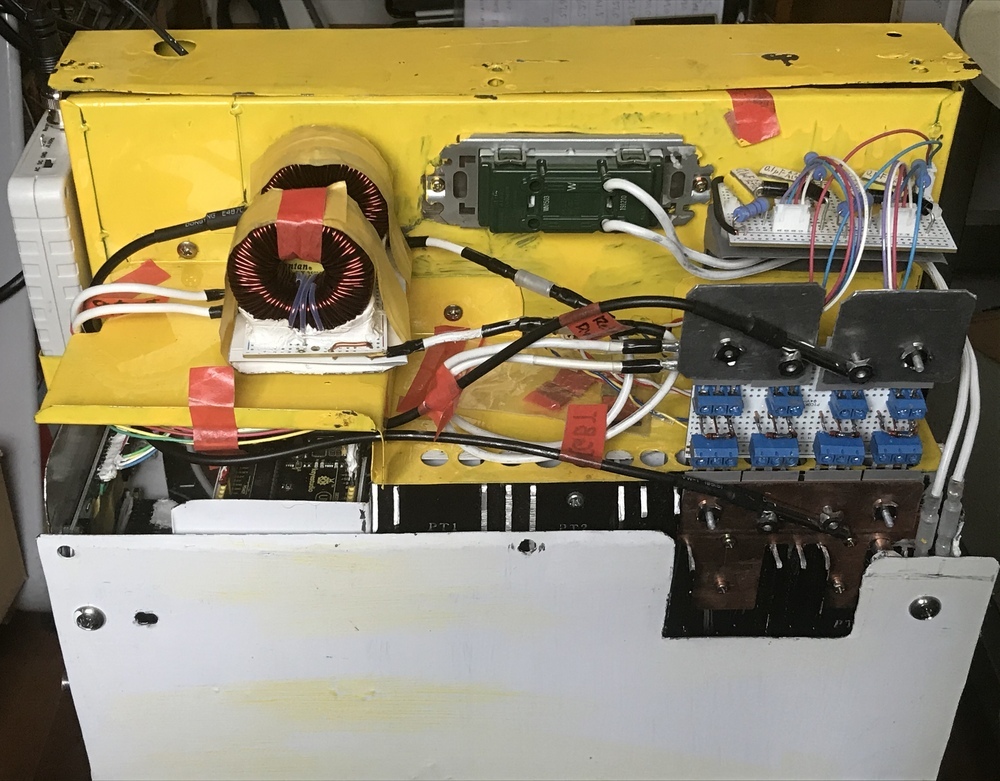

    IGBTs, High Speed Diodes, and Output Filter Coils are placed in the metal shield room;
    Variable Frequency Drive for a larger factory fan-igbt_diodes_coils_1.jpg

    Variable Frequency Drive for a larger factory fan-igbt_diodes_coils_3.jpg

    Chy

  4. #14
    Supporting Member chy_farm's Avatar
    Join Date
    Apr 2018
    Location
    Yokohama, Japan
    Posts
    115
    Thanks
    55
    Thanked 181 Times in 53 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    chy_farm's Tools

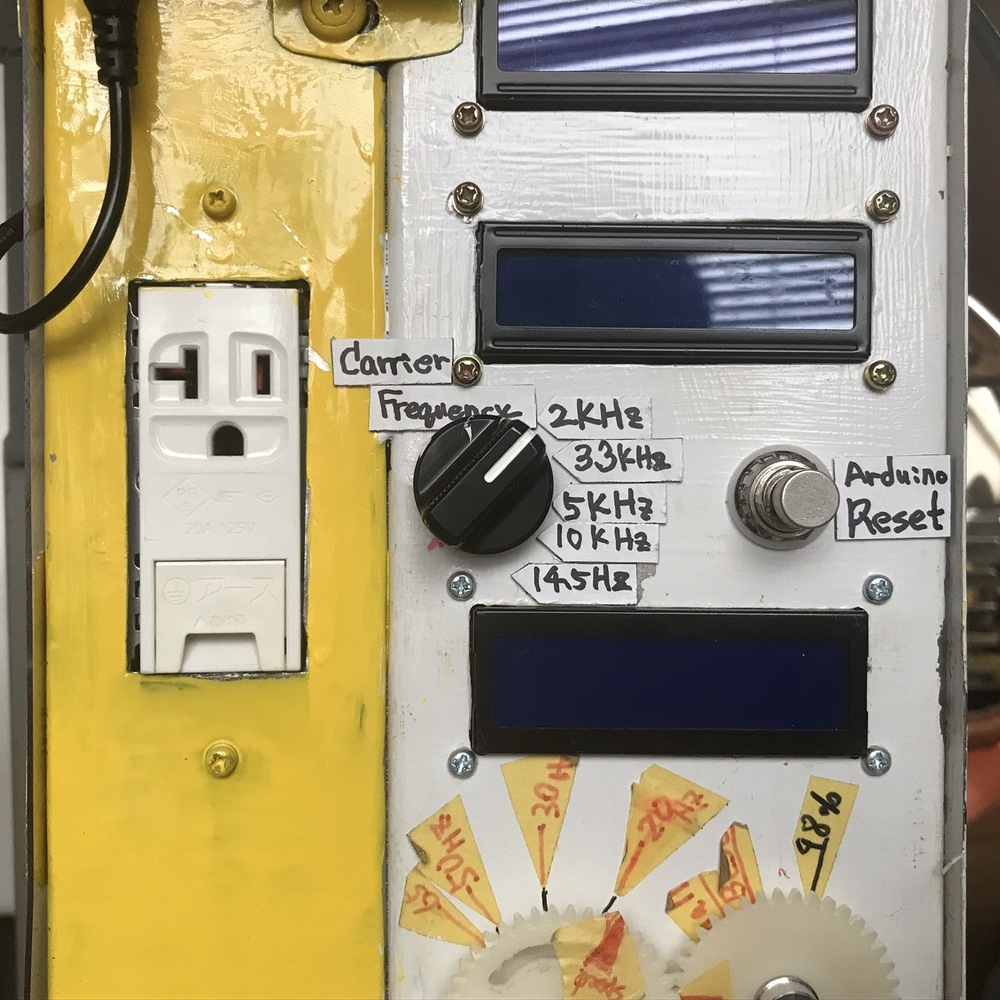

    For an observation and study use, I added several kinds of carrier frequencies from 2kHz to 14.5kHz;
    Variable Frequency Drive for a larger factory fan-carrier_waves.jpg

    Chy

  5. #15
    Supporting Member chy_farm's Avatar
    Join Date
    Apr 2018
    Location
    Yokohama, Japan
    Posts
    115
    Thanks
    55
    Thanked 181 Times in 53 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    chy_farm's Tools
    Quote Originally Posted by trigger View Post
    Does the breadboard not contribute to rf noise ?Once the design goes to PCB there should not be so much interference.

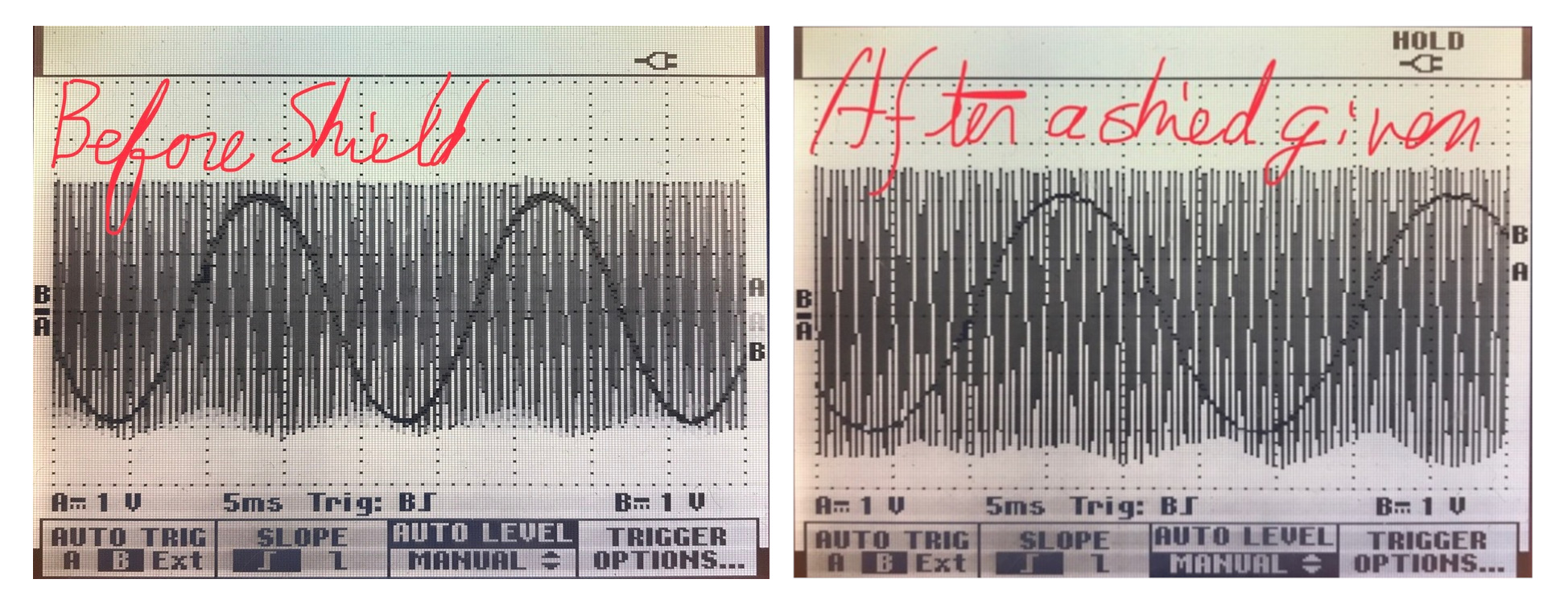

    Trigger, I tried to recall my memory and some data on this, and here found a pic showing comparison between the two, before shield and after shield.
