**Isambard** · Apr 3, 2022, 03:15 PM

Chances are they were patterns for casting the gears, was common.

**marksbug** · Apr 3, 2022, 04:08 PM

those are for adjusting back lash.

**Jon** · Apr 10, 2022, 05:08 PM

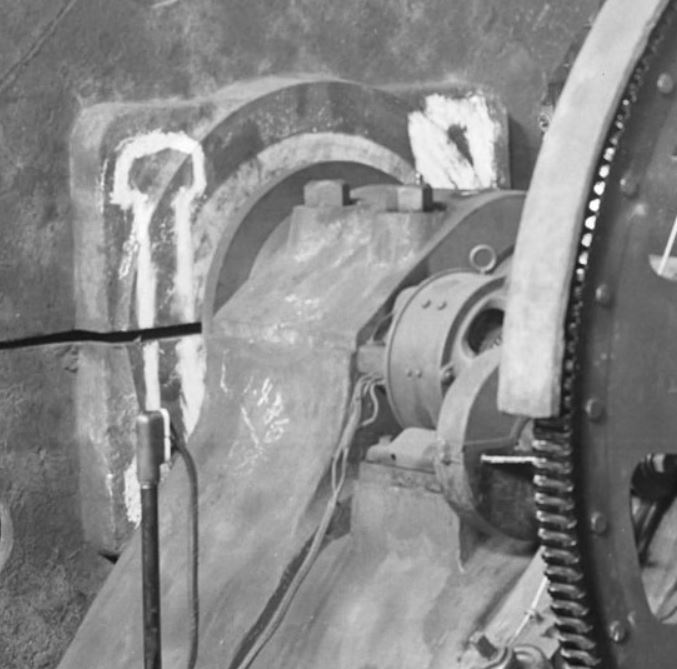

Mesta Machine Company roll lathe. September, 1906.

Fullsize image: https://diqn32j8nouaz.cloudfront.net...3_fullsize.jpg

**Isambard** · Apr 10, 2022, 10:48 PM

It looks like a set of reducing rolls to me, as the material makes a pass through each section of the roll, toward the right, it gets thinner & wider...Possibly...

**Toolmaker51** · Apr 10, 2022, 09:03 PM

Unusual machine. Guessing the diameter could have been turned elsewhere.
Carriage looks clamped to bed and cross slides feed in directly. Appears the opposite forming roll is being test fit. This would corrugate serious material. *26 and *24 gauge rolls for roofing aren't half that size.
