Thread: Vintage work crew photos

  1. #2611
    Supporting Member Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    5,024
    Thanks
    6,810
    Thanked 2,845 Times in 1,803 Posts

    Toolmaker51's Tools
    I learned 18374526 ..18473625 ....... 18527364 .............. 1867532..4?................
    So I started over, with the lawnmower, graduated to Harley, got my AA with 3 cyl Lister Petter, without a VW 4 or Fiat 5 available; made serious MBA jump with a slant 6 Dodge......... Wouldn't be doing aircraft 7 or 9 cylinder radials or Ferrari's, yet always gnawing at me this divulgence of our murky past would surface eventually.

    Actually, I caught the 18436572 bug in our drive way, failure meant missed date. Classroom and laboratory, the engine compartment of new to me '57 283. Conducted intense gain of function research centered on distributor replacement. The jab; after walking 4 miles for a long enough flat-blade screwdriver to clock the oil pump shaft.
    As years went by, found that pattern is not exactly rare, it's numbering sequence of the block.
    I used to part off tops of used distributor caps for buddies, appreciating view of the rotor while setting valve lash. Still have one left, for 235 straight 6.
    Seemed most of us were GM fans, but just helped a Ford'er Sunday, 1700 miles away. While he's thrashing a Y block, by text and camera phone pics. We thought out loud same instant, "Who'd of thought such a conglomeration of situations might one day coincide?"

    The CA auto culture is visible here (Mid West) too, at roughly same population ratio. Not 'tuners', or showroom ready-mades; I mean car and bike builders. Salina, KS, said to be highest concentration. Somewhere in Nebraska there's a legitimate circuit on country roads, cordoned off for the event.
    Why not, if it works F1 in Italian cities and Long Beach CA Gran Prix...
    Found it! I'd build a mid-engine Factory5 around all aluminum Buick first... https://sorcrace.com/
    There's another on rural roads, straightaways and mostly 90 turns, meaning FLAT 90's with a drainage ditch, narrow gravel shoulders, no berms or curbs. Reckon Shelby roadster patterns could do that; you know 0-100-0 in a quarter mile.

    Save 20% on Membership
    Last edited by Toolmaker51; Jun 7, 2022 at 02:06 PM.
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...

  2. The Following User Says Thank You to Toolmaker51 For This Useful Post:

    Rikk (Jun 7, 2022)

  3. #2612
    Supporting Member jimfols's Avatar
    Join Date
    Sep 2015
    Location
    Ontario Calif USA
    Posts
    793
    Thanks
    2,055
    Thanked 482 Times in 257 Posts
    18436572
    15426378

    The SBC fires the same as my FE Ford. Just the cylinders are numbered differently.

    186 More Best Homemade Tools eBook
    Jim

  4. #2613
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    23,820
    Thanks
    7,395
    Thanked 36,011 Times in 10,236 Posts
    Line shaft driven factory and workers. Brazil, 1880.

    Fullsize image: https://s3-us-west-1.amazonaws.com/h...y_fullsize.jpg


  5. #2614
    Supporting Member
    Join Date
    Mar 2017
    Posts
    518
    Thanks
    257
    Thanked 211 Times in 142 Posts
    Just about the right height when one of those flat belts comes off, to take a man's shoulder off. The first orange packing house I worked, had a flat belt driven belt-and-roll sizer. We had belts everywhere and the equipment to stitch them. Even in modern tech, ca 1975, it was a bear to keep them adjusted.

  6. The Following User Says Thank You to neilbourjaily For This Useful Post:

    mwmkravchenko (Jun 13, 2022)

  7. #2615
    Supporting Member Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    5,024
    Thanks
    6,810
    Thanked 2,845 Times in 1,803 Posts

    Toolmaker51's Tools
    Unsure what is in lower left, other than big gears. Driving what, don't know. But definitely a line of vertical boring mills, into the distance.
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...

  8. The Following User Says Thank You to Toolmaker51 For This Useful Post:

    mwmkravchenko (Jun 13, 2022)

  9. #2616
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    10,099
    Thanks
    1,591
    Thanked 7,783 Times in 3,769 Posts

    Frank S's Tools
    Quote Originally Posted by Toolmaker51 View Post
    Unsure what is in lower left, other than big gears. Driving what, don't know. But definitely a line of vertical boring mills, into the distance.
    If you look close at the pair of big gears facing each other you will see they have T slots on their face. and what looks like turned flange rings laying around them and mounted on 1 of them. Maybe set up to turn out mating flanges and 1 guy can watch both operations going on at the same time.
    Never try to tell me it can't be done
    When I have to paint I use KBS products

  10. The Following User Says Thank You to Frank S For This Useful Post:

    mwmkravchenko (Jun 13, 2022)

  11. #2617
    Supporting Member Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    5,024
    Thanks
    6,810
    Thanked 2,845 Times in 1,803 Posts

    Toolmaker51's Tools
    Quote Originally Posted by Frank S View Post
    If you look close at the pair of big gears facing each other you will see they have T slots on their face. and what looks like turned flange rings laying around them and mounted on 1 of them. Maybe set up to turn out mating flanges and 1 guy can watch both operations going on at the same time.
    Oh of course! It's a rail shop.
    Not gears, they are faceplates, a locomotive wheel visible toward viewer; possibly turning mounted wheels.
    To busy critiquing bad lighting, forgot good parts of photograph.
    Still cone-drive, running a jack shaft, to get realistic RPM. The final drive is teeth on face plate. Begs the question, how big a vertical shaper cut those teeth? This could be still half a generation before large mills.
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...

  12. The Following User Says Thank You to Toolmaker51 For This Useful Post:

    mwmkravchenko (Jun 13, 2022)

  13. #2618
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    10,099
    Thanks
    1,591
    Thanked 7,783 Times in 3,769 Posts

    Frank S's Tools
    Quote Originally Posted by Toolmaker51 View Post
    Oh of course! It's a rail shop.
    Not gears, they are faceplates, a locomotive wheel visible toward viewer; possibly turning mounted wheels.
    To busy critiquing bad lighting, forgot good parts of photograph.
    Still cone-drive, running a jack shaft, to get realistic RPM. The final drive is teeth on face plate. Begs the question, how big a vertical shaper cut those teeth? This could be still half a generation before large mills.
    Yes and the large diameter of the faceplates were to accommodate the drive wheels of the big steam locomotives
    Never try to tell me it can't be done
    When I have to paint I use KBS products

  14. The Following 2 Users Say Thank You to Frank S For This Useful Post:

    mwmkravchenko (Jun 13, 2022), old_toolmaker (Jun 19, 2022)

  15. #2619
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    23,820
    Thanks
    7,395
    Thanked 36,011 Times in 10,236 Posts

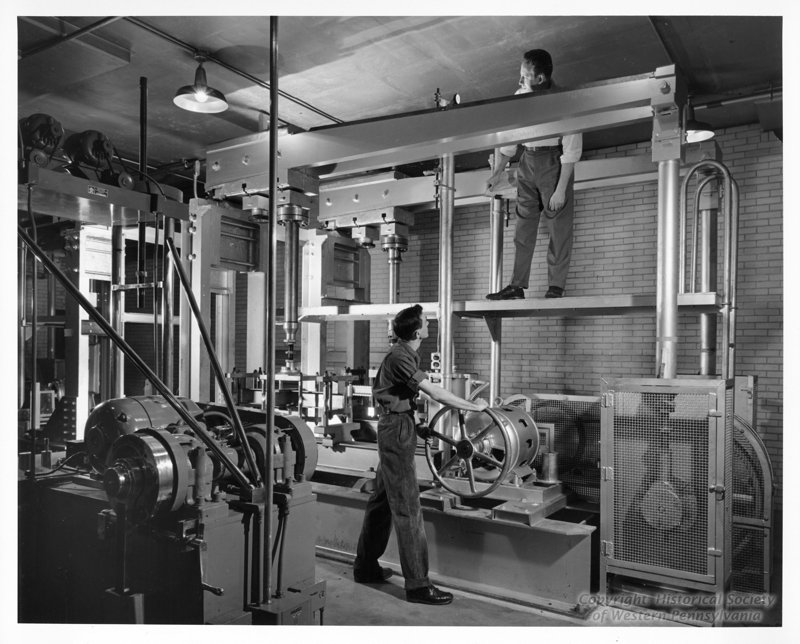

    Strength testing at Alcoa Aluminum Research Laboratory. 1955-1965.

    Fullsize image: https://s3-us-west-1.amazonaws.com/h...b_fullsize.jpg


  16. The Following 2 Users Say Thank You to Jon For This Useful Post:

    carloski (Jun 21, 2022), jimfols (Jun 19, 2022)

  17. #2620
    Supporting Member Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    5,024
    Thanks
    6,810
    Thanked 2,845 Times in 1,803 Posts

    Toolmaker51's Tools
    Tensile or compressive? Crankshaft to the right not much of a clue. But that's a heck of a Tinius-Olsen.
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...
